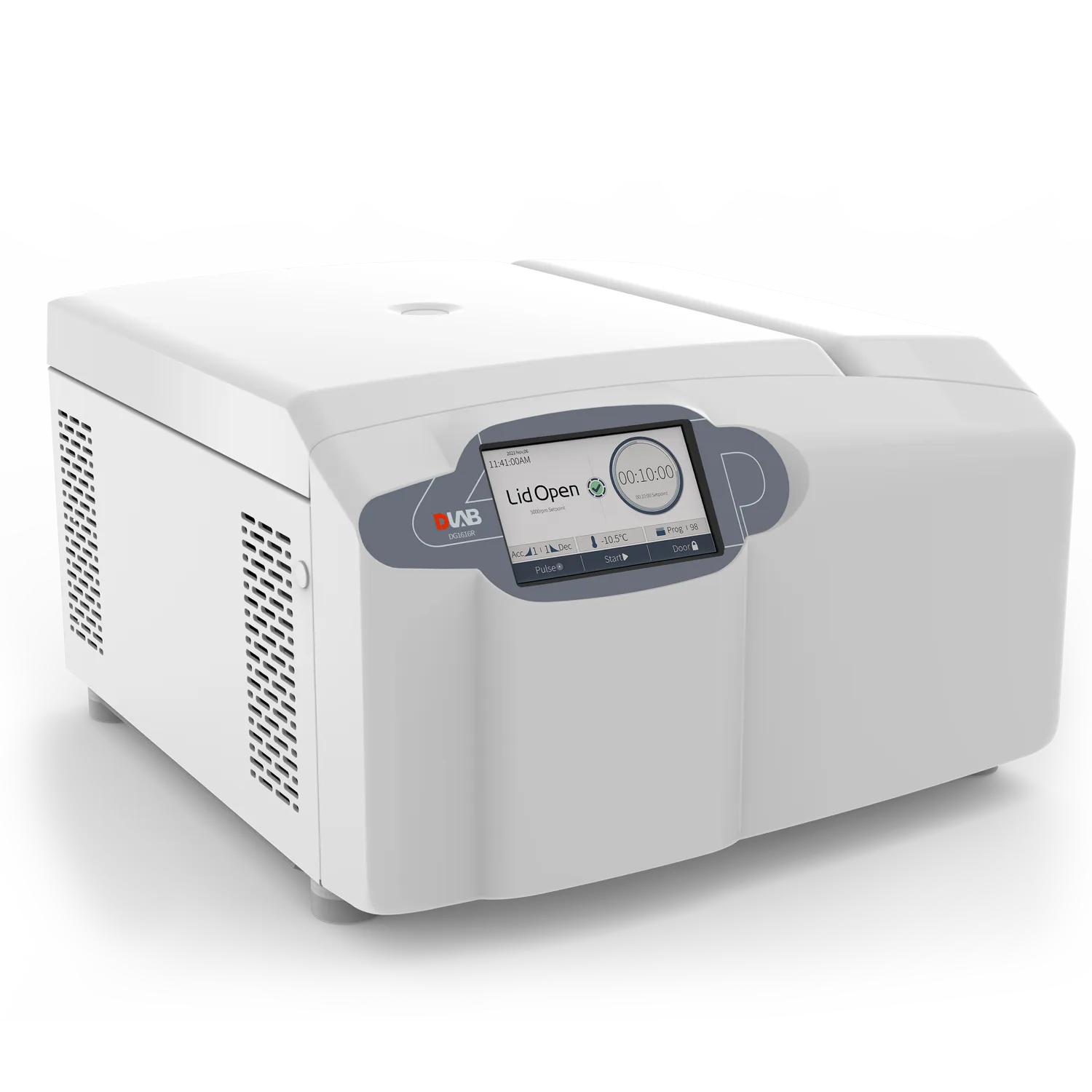

16000rpm Refrigerated High Speed Centrifuge, DG1616R | DLAB Scientific
Original price was: 1,200,000.00৳ .1,150,000.00৳ Current price is: 1,150,000.00৳ .
Key Features
Model: DG1616R
Brand: DLAB Scientific
Origin: USA, Manufactured in China
Speed: 300 – 16000 rpm
RCF: 28621 x g
Temperature Range: -10°C to 40°C
Capacity: Up to 4 x 400 mL (1.6 L total)
Display: 7-inch color touchscreen interface
Program Storage: 100 customized programs
Available on backorder
Product Description
The DLAB DG1616R high-speed refrigerated multi-purpose centrifuge delivers exceptional temperature-controlled sample processing, high-throughput capability, and quantitative separation for clinical diagnostics, molecular biology, biotechnology, pharmaceutical CROs, and environmental testing laboratories across Bangladesh. Designed for temperature-sensitive centrifugation protocols, this refrigerated unit combines powerful rotational speeds up to 16000 rpm with a fast refrigeration system to protect heat-sensitive biological samples, cell cultures, and proteins from thermal degradation.
The centrifuge features an upgraded 7-inch color touchscreen interface with an intuitive UI that simplifies protocol setup, real-time tracking, and multi-parameter monitoring. Driven by a quiet, maintenance-free brushless DC motor, the DG1616R generates up to 28621 x g relative centrifugal force while accommodating sample capacities up to 1.6 L (4 x 400 mL swing-out rotor). Its advanced refrigeration system delivers rapid pre-cooling down to 4°C within minutes and maintains continuous temperature regulation between -10°C and 40°C even during maximum-speed operations.
Constructed with high-strength aluminum alloy rotors featuring 3-layer bio-sealing, the DG1616R supports full high-temperature and high-pressure steam sterilization at 121°C. The instrument supports an extensive line of fixed-angle and swing-out rotors accommodating 400 mL, 200 mL, 100 mL, 50 mL, and 15 mL tubes, alongside 96-well microplates, 384-well PCR plates, and 8-strip PCR tubes. Safety features include dynamic rotor balance detection with immediate imbalance alerts, an electronic magnetic door locking system with single-handed soft touch closing, over-speed detection, over-temperature protection, and 100 customizable program presets for rapid workflow recall.
Click here… to see the manufacturer website for DLAB DG1616R
Technical Specifications
| Parameter | Specification |
| Product Name | High Speed Refrigerated Multi-Purpose Centrifuge |
| Model | DG1616R |
| Brand | DLAB Scientific |
| Origin | USA |
| Speed Range | 300 to 16000 rpm (increment: 1 rpm) |
| Maximum RCF | 28621 x g (increment: 1 x g) |
| Speed Accuracy | ±20 rpm |
| Temperature Setting | -10°C to 40°C |
| Maximum Capacity | 1.6 L (4 x 400 mL) |
| Rotor Options | Swing-out and fixed-angle rotors (4 x 400 mL, 15/50 mL tubes, 96/384-well plates, PCR strips) |
| Run Time | 30 seconds to 99 hours 59 minutes 59 seconds, or HOLD (continuous running) |
| Display | 7-inch color touch screen UI display |
| Motor Type | Maintenance-free brushless DC motor |
| Acceleration / Deceleration Rates | 9 acceleration steps / 9 deceleration steps |
| Program Storage | Up to 100 customizable programs |
| Safety Features | Dynamic balance detection, electronic magnetic door lock, over-speed detection, over-temperature protection |
| Noise Level | ≤ 70 dB |
| Power Supply | AC 100V to 240V, 50Hz/60Hz, 1050 W |
| Dimensions [W x D x H] | 623 x 640 x 375 mm |
| Net Weight | 90 kg |
Q1: What are the official technical specifications of the DLAB DG1616R High-Speed Refrigerated Centrifuge?
Model: DLAB DG1616R Multi-Purpose High-Speed Refrigerated Centrifuge.
Speed Range: 300 to 16,000 rpm, adjustable in 1 rpm increments.
Maximum RCF (Relative Centrifugal Force): 28,621 x g, adjustable in 1 x g increments.
Maximum Capacity: Up to 1.6 L (4 x 400 mL swing-out rotors) or multi-tube / microplate configurations.
Temperature Range: -10 degrees C to 40 degrees C, featuring rapid pre-cooling (from room temperature to 4 degrees C in just minutes).
Speed Accuracy: Plus or minus 20 rpm.
Run Time: 30 seconds to 99 hours 59 minutes 59 seconds, or continuous HOLD operation mode.
Acceleration / Deceleration: 9 acceleration steps and 9 deceleration steps.
Motor Type: Maintenance-free brushless DC motor.
Display Screen: 7-inch high-resolution color touch screen with upgraded UI.
Program Storage: Up to 100 user-defined customizable programs.
Noise Level: Quiet operation at less than or equal to 70 dB.
Power Supply & Rating: AC 100V-240V, 50/60 Hz; Power rating: 1050 W.
Dimensions & Net Weight: Dimensions (W x D x H) approx. 623 x 640 x 375 mm; Net Weight: 90 kg.
Q2: What is the price and local procurement procedure in Bangladesh (BD)?
Price Range: In Bangladesh (BD), the regular market price for the DLAB DG1616R High-Speed Refrigerated Centrifuge typically ranges between BDT 1,250,000 and BDT 1,400,000, depending on chosen rotor configurations, import shipping tariffs, customs clearance, and local supplier warranty support packages.
Procurement Procedure: For official corporate price quotations, institutional tenders, and direct stock verification in BD, contact authorized laboratory distributors such as Federal Scientific Mart (fsm.com.bd).
Q3: What warranty coverage and technical support are provided in Bangladesh?
Warranty Terms: The DLAB DG1616R comes standard with a 12-month (1-year) factory warranty covering refrigeration compressor performance, motor drive failures, touch screen UI issues, and electronic magnetic door lock mechanisms.
Local Support: Authorized local suppliers like Federal Scientific Mart provide professional on-site installation, temperature calibration guidance, rotor balance testing, and maintenance support across Bangladesh.
Q4: What are the key differences between the standard DLAB DG1616 and the refrigerated DG1616R models?
Refrigeration & Temperature Control: The standard DG1616 is a non-refrigerated benchtop centrifuge designed for room-temperature operations, whereas the DG1616R incorporates a heavy-duty, eco-friendly refrigeration system capable of maintaining precise temperatures from -10 degrees C to 40 degrees C with rapid pre-cooling.
Physical Weight and Dimensions: The non-refrigerated DG1616 has a width of 440 mm and weighs 70 kg, whereas the refrigerated DG1616R has a wider chassis measuring 623 mm and weighs 90 kg to accommodate the built-in compressor system.
Power Consumption: The standard DG1616 operates at a power rating of 650 W, while the high-draw refrigeration system on the DG1616R increases its power requirement to 1050 W.
Q5: Which primary applications and industries utilize the DG1616R centrifuge?
Molecular Biology & Genomics: High-speed nucleic acid separation, protein precipitation, and enzyme assays requiring strict thermal regulation.
Clinical & Diagnostic Laboratories: Sensitive blood fraction isolation, cell harvesting, serum/plasma pre-processing, and cold-chain sample preparation.
Pharmaceutical R&D & QC: Drug formulation testing, active ingredient analysis, and biochemical research applications.
Q6: How do you operate and execute a refrigerated centrifugation run step-by-step?
Placement: Place the 90 kg unit on a heavy-duty, level laboratory workbench with adequate clearance for rear ventilation.
Loading: Symmetrically load sample tubes or microplates into the chosen high-strength alloy rotor and ensure dynamic balancing.
Parameter Setup: Turn on power, tap the 7-inch touch screen to set target speed (up to 16,000 rpm), run duration, acceleration/deceleration profiles (1 to 9), and refrigeration temperature (-10 degrees C to 40 degrees C).
Execution: Push down the chamber lid to engage the one-handed electronic magnetic door-lock system, then press start.
Retrieval: Wait for the run to complete, temperature maintenance to idle, and the automatic door lock to release before safely retrieving your samples.
Q7: What rotor options and safety features are supported?
Versatile Rotors: Compatible with high-capacity swing-out rotors (up to 4 x 400 mL), high-speed fixed-angle rotors, microtube adapters, 96-well microplates, 384-well PCR plates, and deep-well plates. 3-layer sealed aluminum alloy rotors are fully autoclavable at 121 degrees C.
Safety Protections: Features automatic rotor identification, dynamic balance detection with imbalance warnings, electronic magnetic door interlocks, and over-speed protection.
Q8: How do you properly clean and maintain the DG1616R?
Chamber Care: Disconnect power before cleaning. Wipe down the internal stainless steel bowl and empty/clean the external condensation collection tank regularly.
Rotor Maintenance: Inspect rotors and tube adapters for chemical residue after use, and autoclave alloy rotors when bio-sterilization is required. Keep the lid slightly ajar when idle to let internal moisture clear.
Q9: What items are included in the standard factory package when purchased?
Main Unit: DLAB DG1616R High-Speed Refrigerated Centrifuge main body with 7-inch touch controller.
Selected Accessories: Ordered rotor configuration (swing-out or angle rotor with matching adapters), power cable, and rotor removal tool.
Documentation: User instruction manual, factory calibration certificate, and quality inspection report.
Q10: Why purchase DLAB laboratory equipment from Federal Scientific Mart (fsm.com.bd)?
Genuine OEM Supply: 100% authentic DLAB Scientific equipment imported directly from certified manufacturing lines with official serial numbers.
Local Technical Support: Expert on-site installation, operational training, and reliable local warranty service in Bangladesh.
Nationwide Logistics: Safe, secure delivery to Dhaka, Chittagong, Rajshahi, Khulna, Sylhet, Barisal, Rangpur, and clinical or research laboratories across Bangladesh.
