8 Hole 4000rpm Centrifuge, Q0408E | QLAB by DLAB

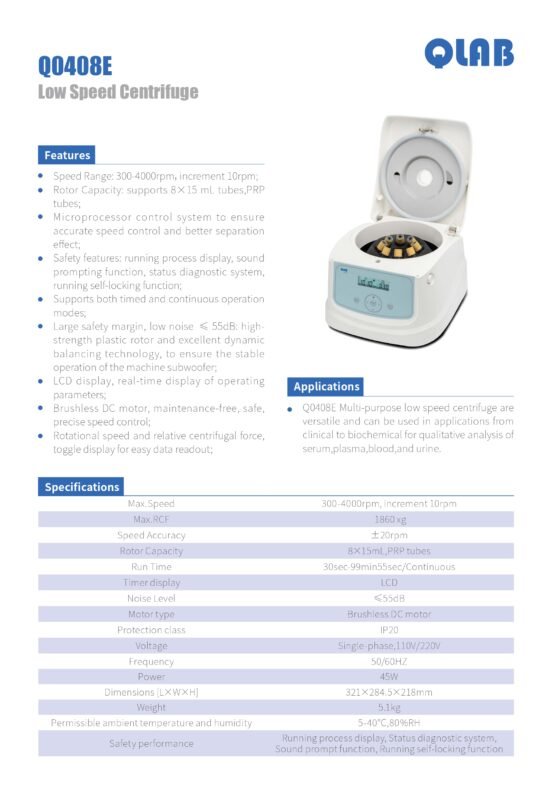

Q1: What are the official technical specifications of the DLAB QLAB Q0408E Low-Speed Centrifuge?

• Model: DLAB QLAB Q0408E Low-Speed Centrifuge (specialized QLAB line optimized for PRP, PRF, and CGF applications).

• Speed Range: 100 to 4,000 rpm (or 300 to 4,000 rpm depending on firmware configuration), with a fine increment of 10 rpm.

• Maximum RCF (Relative Centrifugal Force): 1,860 x g.

• Speed Accuracy: Plus or minus 20 rpm.

• Rotor Capacity: Fixed high-strength plastic angle rotor supporting up to 8 x 15 mL tubes, including standard Platelet-Rich Plasma (PRP) tubes.

• Run Time: 30 seconds to 99 minutes 55 seconds, or continuous HOLD operation mode.

• Motor Type: Maintenance-free brushless DC motor.

• Display Screen: Clear LCD screen featuring simultaneous real-time display of speed, RCF, running time, and program status.

• Program Memory & Special Modes: Built-in dedicated programs for PRP, PRF, and CGF preparation, supporting up to 99 user-defined program memories with 9 segmented processes (up to 6 steps each).

• Noise Level: Quiet operation at less than or equal to 55 dB(A).

• Protection Class: IP20.

• Power Supply & Rating: Single-phase, 110V to 240V, 50/60 Hz, 40W.

• Dimensions & Net Weight: 321 x 284.5 x 215 mm; Net Weight: 5.1 kg.

Q2: What is the price and local procurement procedure in Bangladesh (BD)?

• Price Range: In Bangladesh (BD), the regular market price for the DLAB Q0408E Low-Speed Centrifuge typically ranges between BDT 45,000 and BDT 50,000, depending on import duties, shipping tariffs, and local supplier support packages.

• Procurement Procedure: For official corporate price quotations, institutional tenders, and direct stock verification in BD, contact authorized laboratory distributors such as Federal Scientific Mart (fsm.com.bd).

Q3: What warranty coverage and technical support are provided in Bangladesh?

• Warranty Terms: The DLAB Q0408E comes standard with a 12-month (1-year) factory warranty covering brushless motor drive failures, microprocessor control board issues, and display faults.

• Local Support: Authorized local suppliers like Federal Scientific Mart provide professional technical guidance, installation assistance, tube adapter compatibility guidance, and maintenance support across Bangladesh.

Q4: How do the specialized PRP/PRF/CGF programs and segmented centrifugation enhance performance?

• One-Click Clinical Protocols: Specifically pre-programmed with optimized workflows for Platelet-Rich Plasma (PRP), Platelet-Rich Fibrin (PRF), and Concentrated Growth Factors (CGF) frequently required in aesthetic medicine, dental surgery, and orthopedics.

• Segmented Centrifugation: Allows runs to be divided into distinct steps (up to 9 programs with 6 segments each), where each step executes its own specific speed and duration profile sequentially to ensure ideal biological separation.

Q5: Which primary applications and industries utilize the Q0408E centrifuge?

• Aesthetic & Regenerative Medicine: Preparation of PRP and autologous blood concentrates for skin rejuvenation, hair restoration, and wound healing.

• Dental & Oral Surgery: Isolation of PRF and CGF membranes for bone grafting and periodontal tissue regeneration.

• Clinical & Pathology Labs: Routine qualitative analysis of plasma, serum, blood, and urine samples using 15 mL tubes.

Q6: How do you operate and execute a centrifugation run on the Q0408E step-by-step?

• Placement: Place the compact, 5.1 kg centrifuge on a firm, flat, and level laboratory workbench.

• Loading: Symmetrically load your 15 mL sample tubes or PRP tubes into the 8-place rotor slots to ensure proper dynamic balance.

• Parameter Setup: Turn on power, use the LCD interface to select a pre-saved PRP/PRF/CGF protocol or manually program your target speed (up to 4,000 rpm) and run duration.

• Execution: Close the lid securely until the running self-locking mechanism engages, then press start.

• Retrieval: Wait for the run to complete and the lock to release before safely opening the chamber to retrieve your separated plasma or blood layers.

Q7: What safety mechanisms are integrated into the unit?

• Self-Locking & Diagnostics: Features a running self-locking mechanism, a status diagnostic system, running process display, and sound prompt alerts upon cycle completion.

• Stable Operation: Built with a dynamic balancing system and high-strength plastic housing to keep acoustic noise at or below 55 dB(A).

Q8: How do you properly clean and maintain the centrifuge?

• Chamber Care: Always disconnect the power cord before cleaning. Wipe down the inner chamber and exterior housing using a soft cloth dampened with mild neutral detergent.

• Rotor Maintenance: Inspect the 8 x 15 mL fixed rotor regularly for chemical residue or tube leaks. Keep tube slots clean and dry when stored.

Q9: What items are included in the standard factory package when purchased?

• Main Unit: DLAB QLAB Q0408E Low-Speed Centrifuge main body.

• Rotor Included: Built-in 8 x 15 mL fixed-angle rotor (compatible with PRP tubes).

• Documentation & Power: Power cable, user instruction manual, and factory quality inspection report.

Q10: Why purchase DLAB laboratory equipment from Federal Scientific Mart (fsm.com.bd)?

• Genuine OEM Supply: 100% authentic DLAB Scientific equipment imported directly from certified manufacturing lines with official serial numbers.

• Local Technical Support: Expert setup advice, PRP tube compatibility guidance, and reliable local warranty service in Bangladesh.

• Nationwide Logistics: Safe, secure delivery to Dhaka, Chittagong, Rajshahi, Khulna, Sylhet, Barisal, Rangpur, and clinical or research facilities across Bangladesh.
