Q1: What are the official technical specifications of the DLAB SP-V1100 Visible Spectrophotometer?

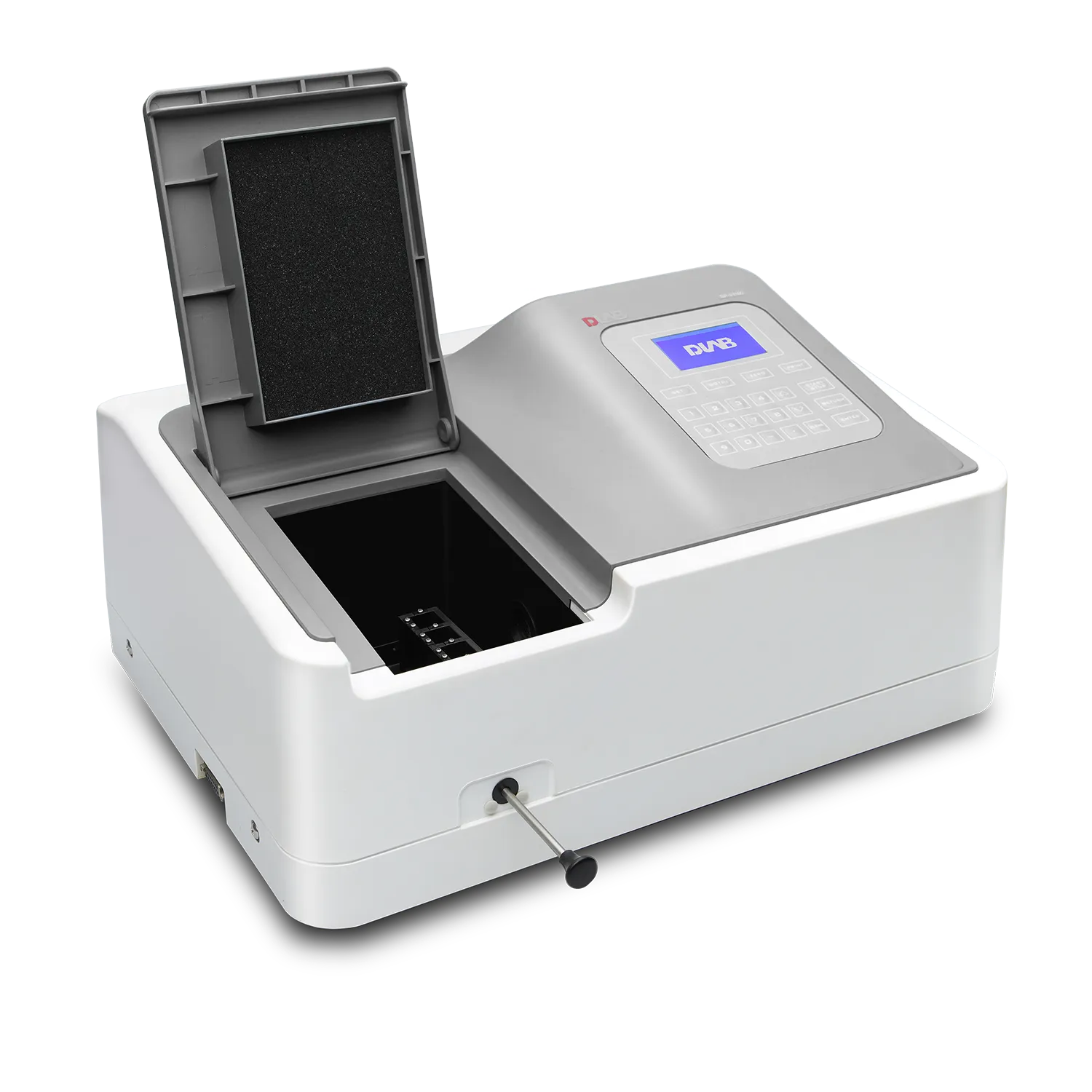

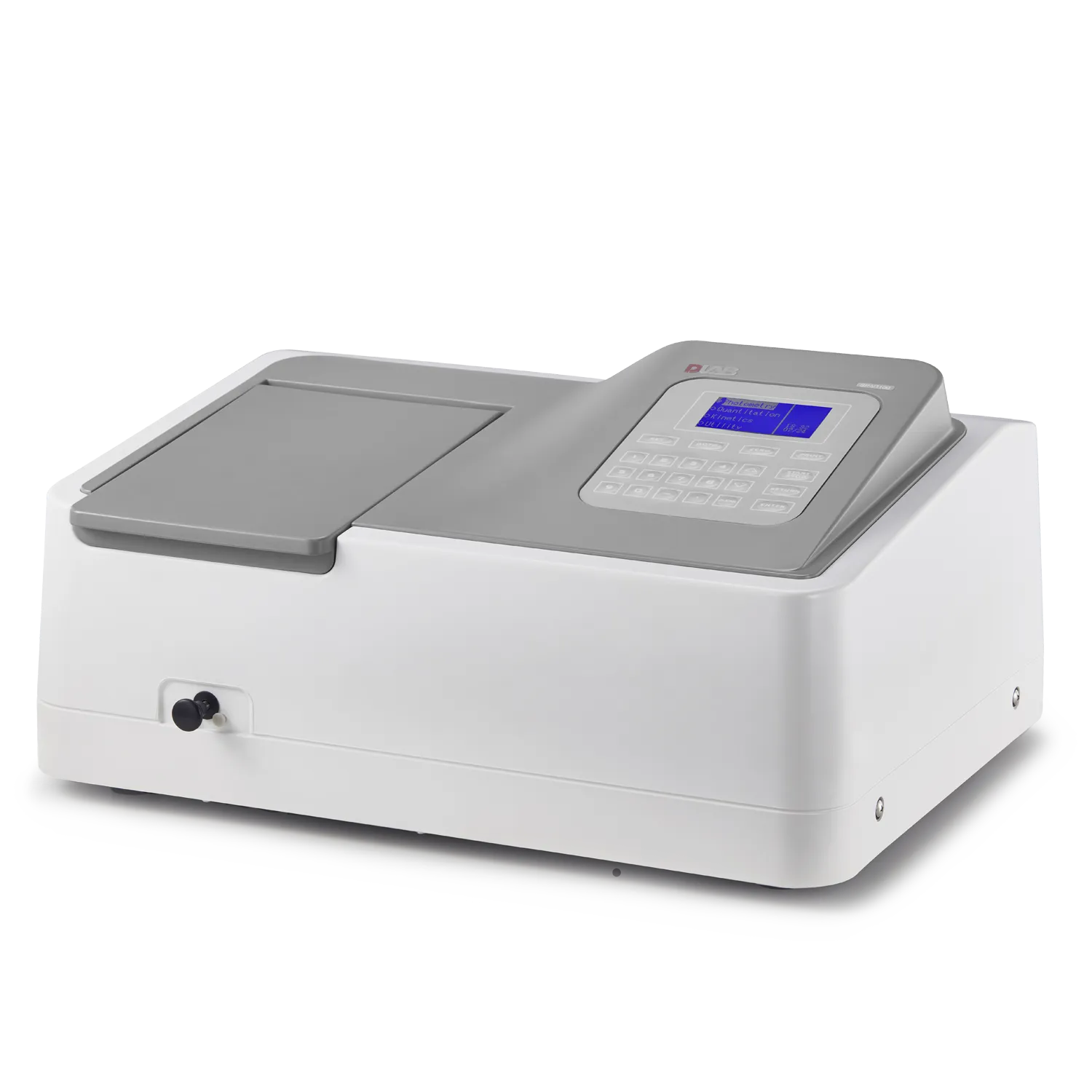

• Model: DLAB SP-V1100 Single Beam Visible Spectrophotometer.

• Wavelength Range: 325 to 1000 nm.

• Optical System: Single beam.

• Light Source: Tungsten-halogen lamp.

• Spectral Bandwidth: 2.0 nm.

• Wavelength Accuracy & Repeatability: Accuracy of plus or minus 1.0 nm; repeatability of less than or equal to 0.5 nm.

• Photometric Range: -0.3 to 3.0 A, 0 to 200% T.

• Photometric Accuracy: plus or minus 0.002 A (0 to 0.5 A), plus or minus 0.004 A (0.5 to 1.0 A), plus or minus 0.3% T at 100% T.

• Photometric Repeatability: Less than or equal to 0.001 A (0 to 0.5 A), less than or equal to 0.002 A (0.5 to 1.0 A), less than or equal to 0.15% T at 100% T.

• Stray Light: Less than or equal to 0.05% T at 360 nm.

• Baseline Stability: Less than or equal to 0.002 A/h at 500 nm (after 2 hours of preheating).

• Display Screen: Backlit dot-matrix LCD display.

• Data Storage Capacity: Up to 200 groups of test data and 200 standard curves.

• Data Output Interfaces: USB port and parallel port for printers.

• Power Supply & Rating: AC 110/220V, 50/60 Hz, 80W.

• Dimensions & Net Weight: 490 x 360 x 210 mm; Net Weight: 11 kg.

Q2: What is the price and local procurement procedure in Bangladesh (BD)?

• Price Range: In Bangladesh (BD), the regular market price for the DLAB SP-V1100 Visible Spectrophotometer typically ranges between BDT 250,000 and BDT 290,000, depending on import shipping tariffs, customs duties, and local supplier support packages.

• Procurement Procedure: For official corporate price quotations, institutional tenders, and direct stock verification in BD, contact authorized laboratory distributors such as Federal Scientific Mart (fsm.com.bd).

Q3: What warranty coverage and technical support are provided in Bangladesh?

• Warranty Terms: The DLAB SP-V1100 comes standard with a 12-month (1-year) factory warranty covering tungsten lamp ignition faults, optical grating alignment issues, and electronic display board defects.

• Local Support: Authorized local suppliers like Federal Scientific Mart provide local technical guidance, installation assistance, photometric calibration support, and maintenance service across Bangladesh.

Q4: How do the enhanced 2.0 nm bandwidth and automated wavelength settings improve performance?

• Higher Optical Resolution: Features a tighter spectral bandwidth of 2.0 nm (compared to 4.0 nm on the SP-V1000), providing sharper spectral resolution during testing.

• Auto-Setting Wavelength: Operators can use the front keypad to automatically adjust and set wavelengths without manual mechanical calibration.

Q5: Which primary applications and industries utilize the SP-V1100 spectrophotometer?

• Educational & Teaching Laboratories: Advanced quantitative analysis, chemistry coursework, and student training in schools and universities.

• Environmental & Water Testing: Routine colorimetric analysis of water quality, wastewater parameters, and chemical solutions.

• Industrial & Agricultural QC: Quality inspection and routine concentration testing in industrial production and agricultural laboratories.

Q6: How do you operate and execute an absorbance measurement on the SP-V1100 step-by-step?

• Warm-Up: Power on the spectrophotometer and allow it to preheat for at least 30 minutes to ensure baseline stability.

• Wavelength Selection: Use the keypad and LCD screen to automatically set your target analytical wavelength within the 325 to 1000 nm range.

• Blank Calibration: Insert a reference blank cuvette into the 4-position sample holder compartment and perform a baseline auto-zero calibration.

• Sample Testing: Place your sample cuvette into the optical path, close the compartment lid, and record absorbance, transmittance, or concentration values on the backlit LCD screen.

• Data Saving: Save test results directly into internal RAM storage (supporting up to 200 datasets and standard curves) or export data via the USB port.

Q7: What data recovery and storage safety features are integrated?

• On-Board Memory: Stores up to 200 groups of test data and 200 standard curves directly in memory.

• Power-Failure Protection: Features built-in data protection that allows previous test results and standard curves to be fully restored even after a sudden power failure.

Q8: How do you properly clean and maintain the spectrophotometer?

• Sample Compartment Care: Keep the cuvette sample holder clean and dry. Immediately wipe up any chemical or liquid spills inside the compartment to protect optical mirrors.

• External Cleaning: Clean the outer casing with a soft, dry cloth. Never use harsh abrasive organic solvents on the LCD display or optical glass windows.

• Lamp Maintenance: Monitor tungsten-halogen lamp hours; replace the lamp through authorized technicians when light intensity or baseline stability drops below operational thresholds.

Q9: What items are included in the standard factory package when purchased?

• Main Unit: DLAB SP-V1100 Single Beam Visible Spectrophotometer main body.

• Standard Accessories: Set of 4 glass square cuvettes, power cable, and dust cover.

• Documentation: User instruction manual, calibration certificate, and factory quality inspection report.

Q10: Why purchase DLAB analytical equipment from Federal Scientific Mart (fsm.com.bd)?

• Genuine OEM Supply: 100% authentic DLAB Scientific equipment imported directly from certified manufacturing lines with official serial numbers.

• Local Technical Support: Expert instrument setup, software guidance, and reliable local warranty service in Bangladesh.

• Nationwide Logistics: Safe, secure delivery to Dhaka, Chittagong, Rajshahi, Khulna, Sylhet, Barisal, Rangpur, and academic or industrial research labs across Bangladesh.
