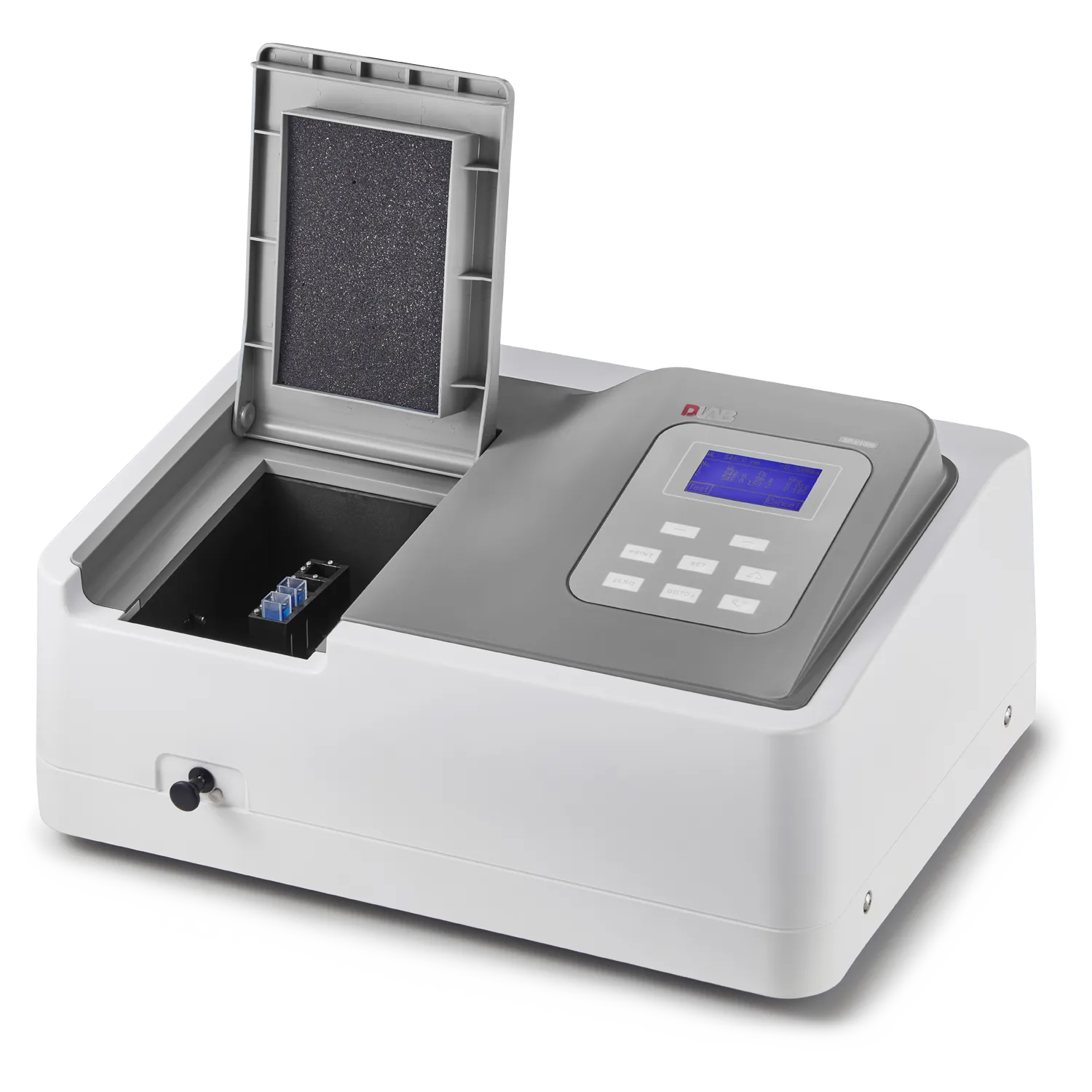

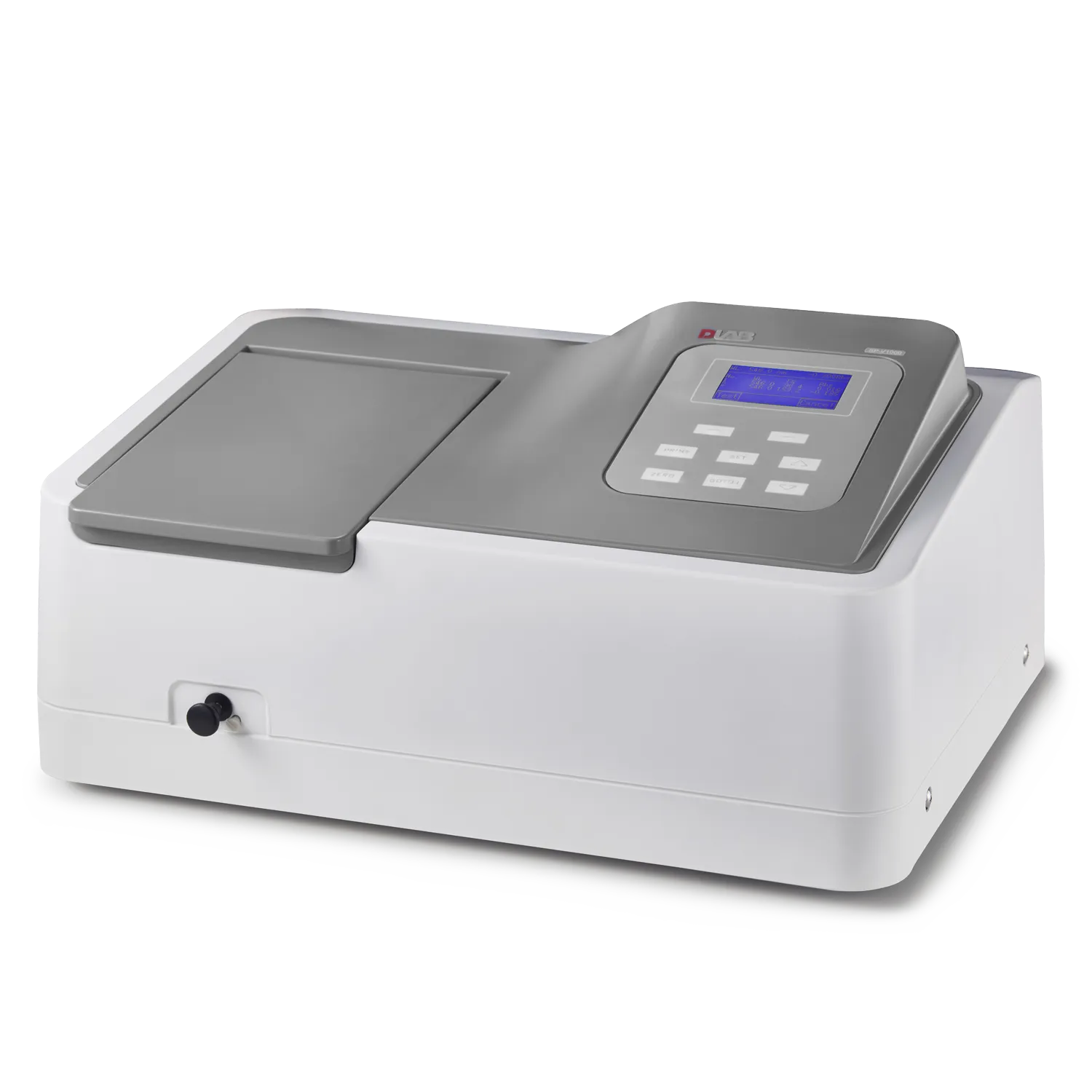

SP-UV1000 Spectrophotometer
Original price was: 350,000.00৳ .330,000.00৳ Current price is: 330,000.00৳ .
Key Features of SP-UV1000 Spectrophotometer
- Wavelength Range: 190–1100 nm, covering both UV and visible spectra
- Spectral Bandwidth: 4.0 nm
- Light Source: Automatic switching between Deuterium (UV) and Tungsten (Visible) lamps
- Optical System: Single beam
- Photometric Range: -0.3 to 3.0 A, 0–200%T
- Data Storage: Stores up to 200 data groups and 200 standard curves; data recovery after power failure
- Display: 128×64 dot-matrix backlit LCD
- Sample Compartment: 4-position, 10 mm pathlength cuvette holder
- Connectivity: USB and parallel port for printer
- Software Compatibility: Optional ‘Wave Professional’ software for PC control, spectrum scanning, kinetics, multi-wavelength analysis, and nucleic acid/protein quantification
The SP-UV1000 Spectrophotometer is a versatile instrument designed for precise quantitative analysis across a broad wavelength range of 190 to 1100 nm. Its single-beam optical system, combined with automatic switching between Deuterium and Tungsten lamps, ensures accurate measurements in both UV and visible regions.
Equipped with a user-friendly 128×64 dot-matrix backlit LCD, the SP-UV1000 displays comprehensive data and graphical representations, facilitating easy interpretation of results. The instrument’s onboard memory allows storage of up to 200 data groups and 200 standard curves, with data recovery capabilities in case of power interruptions.
The sample compartment accommodates a 4-position, 10 mm pathlength cuvette holder, suitable for various sample types. For enhanced functionality, the optional ‘Wave Professional’ software enables PC control, offering features such as spectrum scanning, time-based kinetics, multi-wavelength analysis, and nucleic acid/protein quantification. A truly find product of DLAB.
| Parameter | Specification |
| Optical System | Single beam |
| Light Source | Deuterium and Tungsten lamps (automatic switching) |
| Wavelength Range | 190–1100 nm |
| Spectral Bandwidth | 4.0 nm |
| Wavelength Accuracy | ±2 nm |
| Wavelength Repeatability | ≤1 nm |
| Photometric Range | -0.3 to 3.0 A, 0–200%T |
| Photometric Accuracy | ±0.003 A @ 0.5 A; ±0.006 A @ 1.0 A; ±0.5%T @ 100%T |
| Photometric Repeatability | ≤0.0015 A @ 0.5 A; ≤0.003 A @ 1.0 A; ≤0.25%T @ 100%T |
| Stability | ≤0.002 A/h @ 500 nm (after 2-hour preheat) |
| Stray Light | ≤0.2%T @ 220 nm & 360 nm |
| Sample Compartment | 4-position, 10 mm pathlength cuvette holder |
| Display | 128×64 dot-matrix backlit LCD |
| Data Output | USB and parallel port (printer) |
| Power Requirements | 110/220 VAC, 50/60 Hz, 120 W |
| Dimensions (L×W×H) | 490×360×210 mm |
| Weight | 14 kg |
| Color | |
|---|---|
| Weight | 14 kg |
| Dimensions | 490×360×120 nm |
Download the product catalog-sp-uv1000
