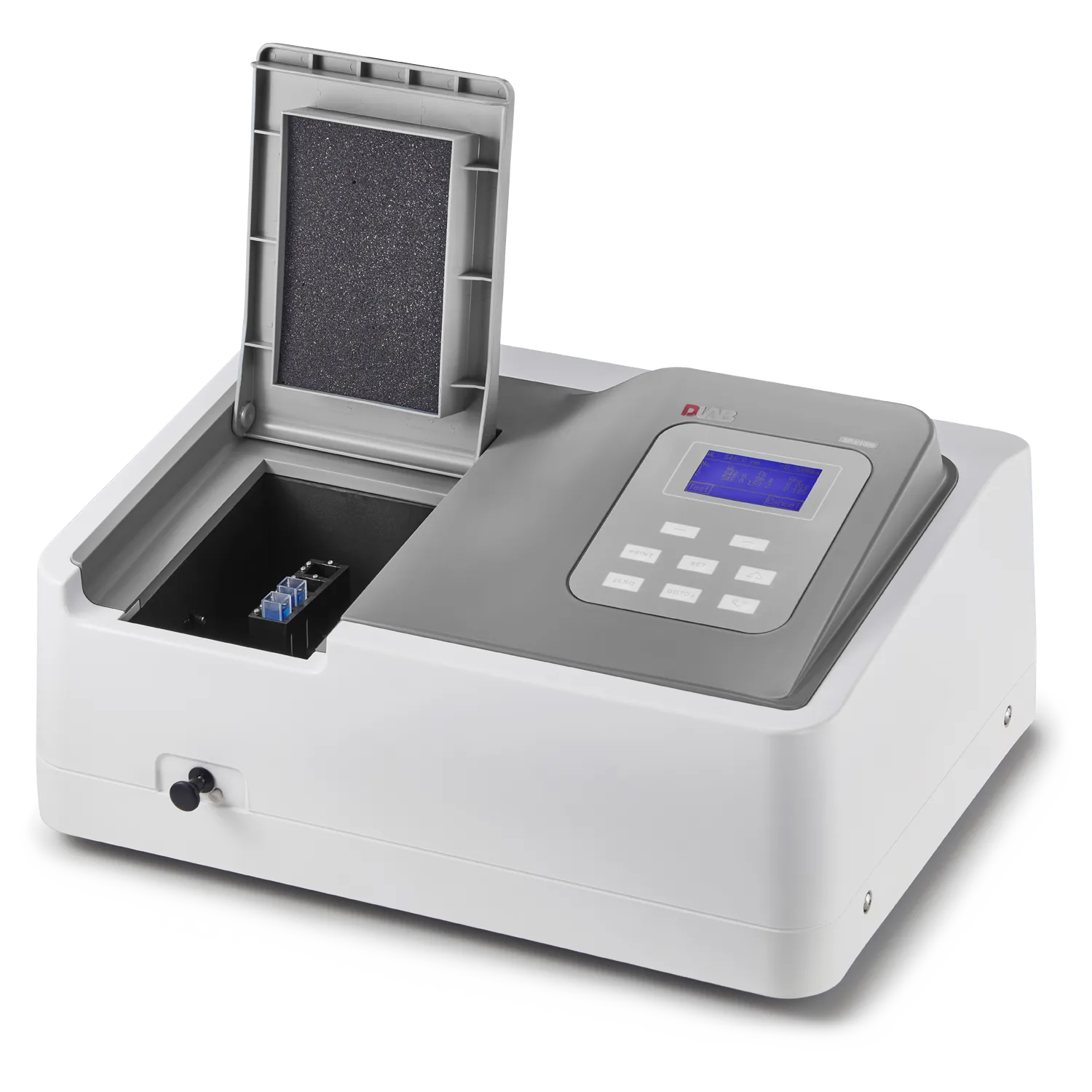

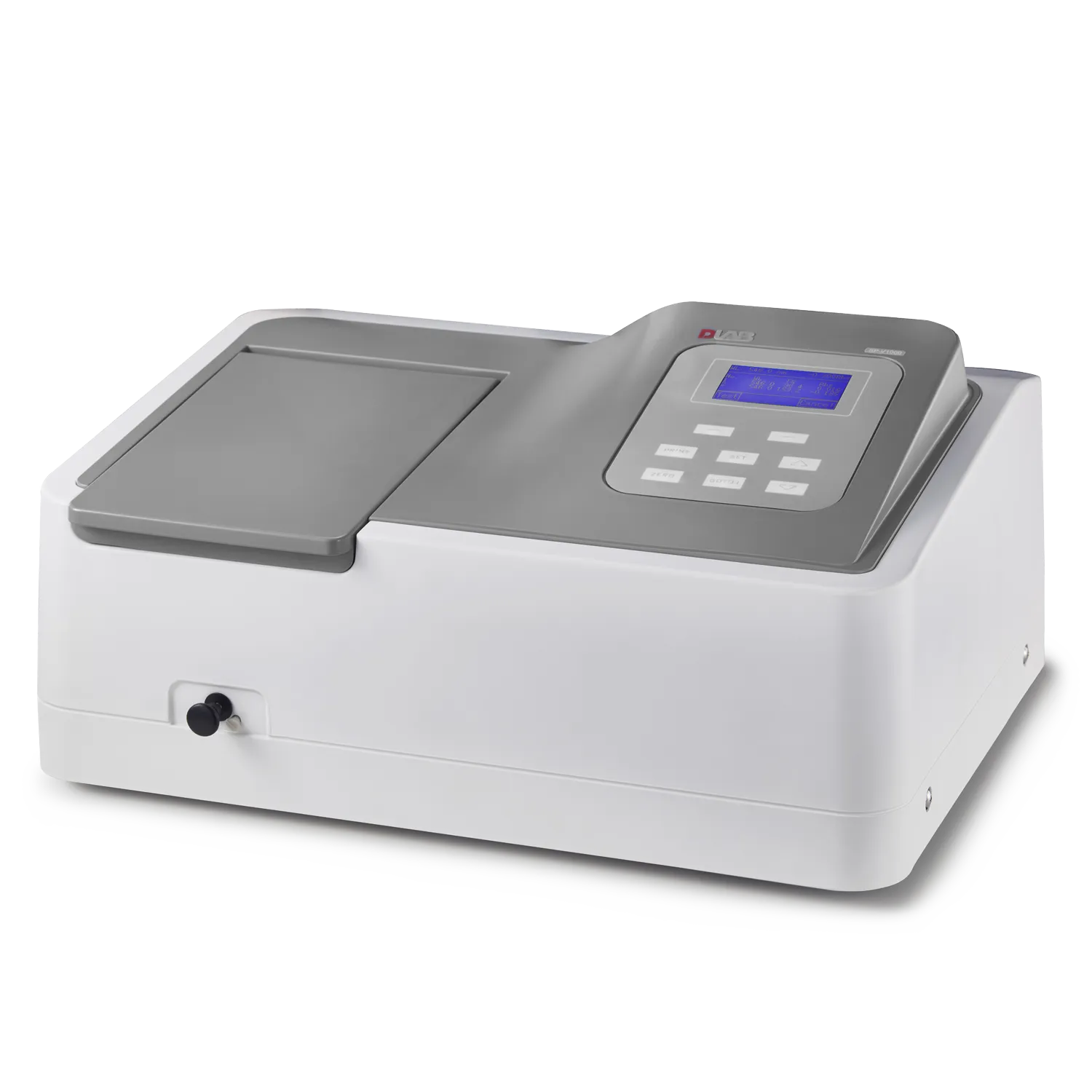

SP-UV1000 Spectrophotometer

Original price was: 350,000.00৳ .Current price is: 330,000.00৳ .

Key Features of SP-UV1000 Spectrophotometer

Wavelength Range: 190–1100 nm, covering both UV and visible spectra
Spectral Bandwidth: 4.0 nm
Light Source: Automatic switching between Deuterium (UV) and Tungsten (Visible) lamps
Optical System: Single beam
Photometric Range: -0.3 to 3.0 A, 0–200%T
Data Storage: Stores up to 200 data groups and 200 standard curves; data recovery after power failure
Display: 128×64 dot-matrix backlit LCD
Sample Compartment: 4-position, 10 mm pathlength cuvette holder
Connectivity: USB and parallel port for printer
Software Compatibility: Optional ‘Wave Professional’ software for PC control, spectrum scanning, kinetics, multi-wavelength analysis, and nucleic acid/protein quantification

SKU: SP-UV1000 Category: spectrophotometer

The SP-UV1000 Spectrophotometer is a versatile instrument designed for precise quantitative analysis across a broad wavelength range of 190 to 1100 nm. Its single-beam optical system, combined with automatic switching between Deuterium and Tungsten lamps, ensures accurate measurements in both UV and visible regions.

Equipped with a user-friendly 128×64 dot-matrix backlit LCD, the SP-UV1000 displays comprehensive data and graphical representations, facilitating easy interpretation of results. The instrument’s onboard memory allows storage of up to 200 data groups and 200 standard curves, with data recovery capabilities in case of power interruptions.

The sample compartment accommodates a 4-position, 10 mm pathlength cuvette holder, suitable for various sample types. For enhanced functionality, the optional ‘Wave Professional’ software enables PC control, offering features such as spectrum scanning, time-based kinetics, multi-wavelength analysis, and nucleic acid/protein quantification. A truly find product of DLAB.

Parameter	Specification
Optical System	Single beam
Light Source	Deuterium and Tungsten lamps (automatic switching)
Wavelength Range	190–1100 nm
Spectral Bandwidth	4.0 nm
Wavelength Accuracy	±2 nm
Wavelength Repeatability	≤1 nm
Photometric Range	-0.3 to 3.0 A, 0–200%T
Photometric Accuracy	±0.003 A @ 0.5 A; ±0.006 A @ 1.0 A; ±0.5%T @ 100%T
Photometric Repeatability	≤0.0015 A @ 0.5 A; ≤0.003 A @ 1.0 A; ≤0.25%T @ 100%T
Stability	≤0.002 A/h @ 500 nm (after 2-hour preheat)
Stray Light	≤0.2%T @ 220 nm & 360 nm
Sample Compartment	4-position, 10 mm pathlength cuvette holder
Display	128×64 dot-matrix backlit LCD
Data Output	USB and parallel port (printer)
Power Requirements	110/220 VAC, 50/60 Hz, 120 W
Dimensions (L×W×H)	490×360×210 mm
Weight	14 kg
