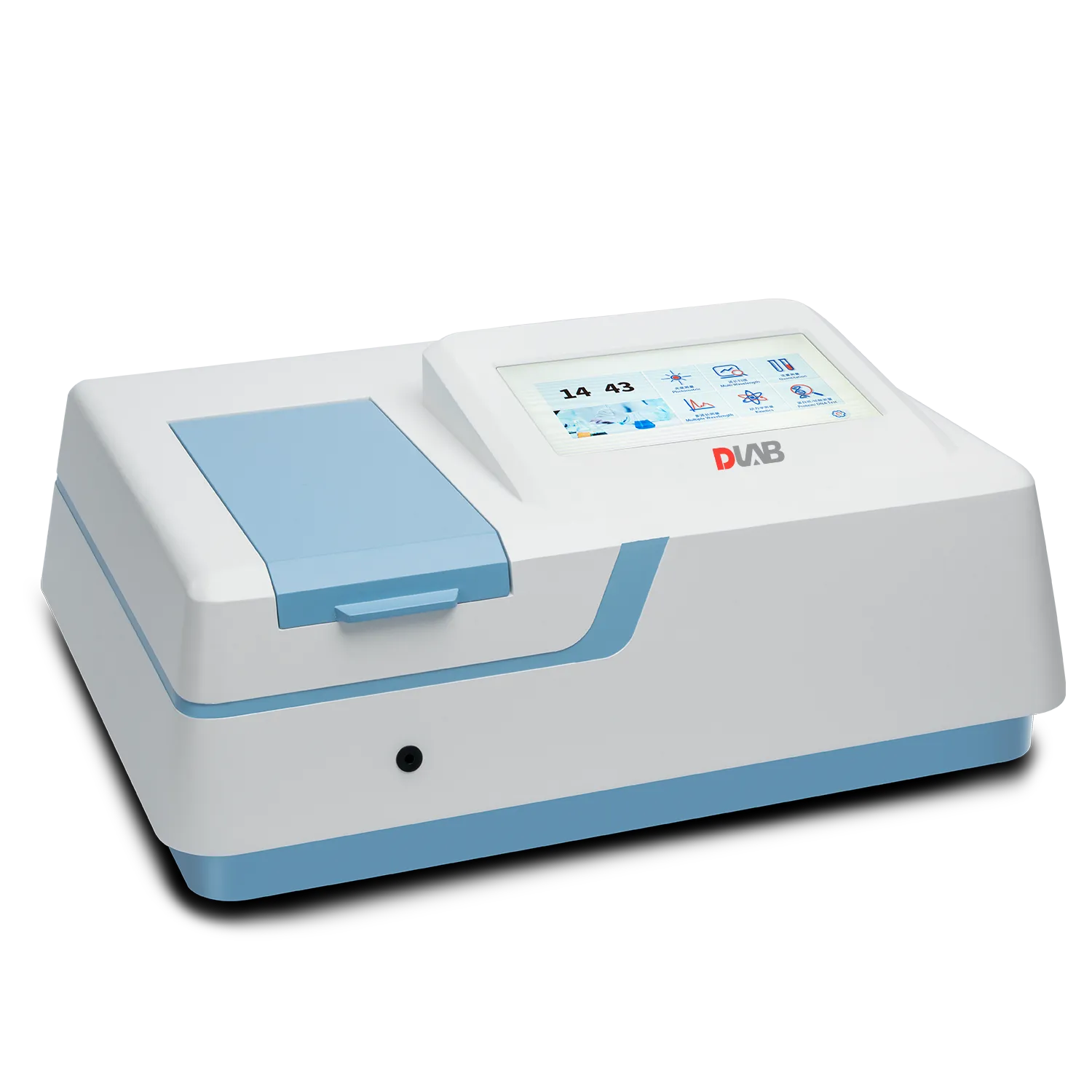

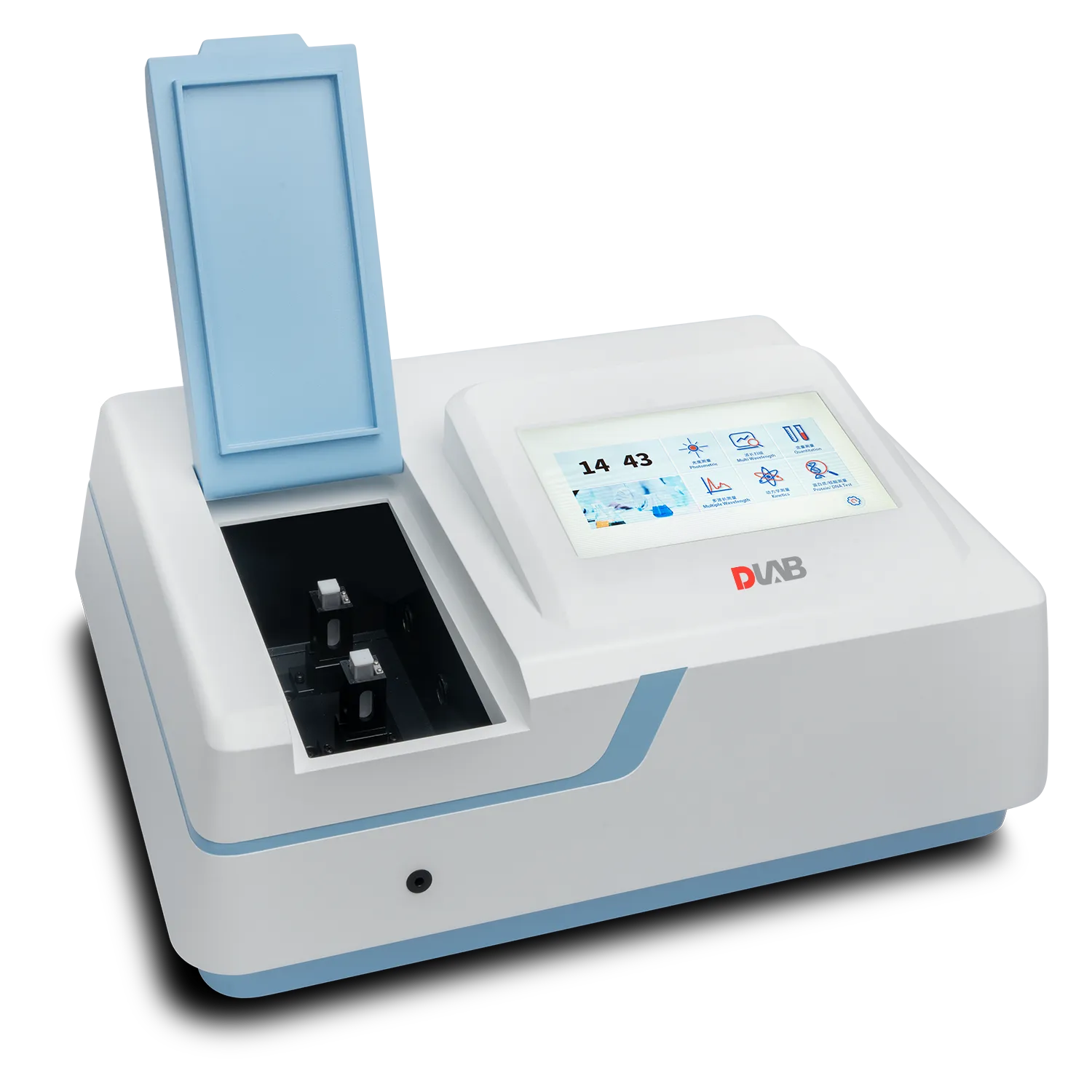

SP-UV2101 UV-Vis Spectrophotometer

Original price was: 650,000.00৳ .Current price is: 630,000.00৳ .

Key Features of SP-UV2101 UV-Vis Spectrophotometer

Wavelength Range: 190–1100 nm
Spectral Bandwidth: 1.0 nm
Optical System: Single beam with 1200 lines/mm grating
Light Source: Imported Deuterium and Tungsten lamps
Detector: Imported Silicon Photodiode
Display: 10.1-inch high-resolution TFT colored capacitive touch screen (1024×600)

SKU: SP-UV2101 Category: spectrophotometer

The SP-UV2101 UV-Vis Spectrophotometer is a versatile and high-precision instrument designed for a wide range of laboratory applications, including biotechnology, pharmaceuticals, and academic research. Its single-beam optical system, combined with a holographic grating monochromator and a digital photodiode detector, ensures low stray light, low noise, and high photometric accuracy and stability.

Equipped with a 10.1-inch high-resolution TFT colored capacitive touch screen, the SP-UV2101 offers an intuitive and user-friendly graphical interface. The instrument supports multiple measurement modes, including photometric measurement, quantitative analysis, spectrum scanning, kinetics, DNA/protein testing, and multi-wavelength testing.

The SP-UV2101 UV-Vis Spectrophotometer boasts powerful storage capabilities, able to save various types of data and spectra, with a standard USB interface for direct data exportation for editing, measurement, and storage. It also features a power-off data retention function. When controlled via PC software, it provides richer extension applications, adhering to GLP/GMP laboratory standards and including comprehensive user management, log recording, data storage traceability, and report output functions.

Parameter	Specification
Optical System	Single beam, grating 1200 lines/mm
Wavelength Range	190–1100 nm
Spectral Bandwidth	1.0 nm
Wavelength Accuracy	±0.1 nm @ 656.1 nm, ±0.3 nm across full range
Wavelength Repeatability	≤0.1 nm
Photometric Range	0–200%T, -0.3 to 3.0 A, 0–9999 C
Photometric Accuracy	±0.002 A (0–0.5 A), ±0.004 A (0.5–1.0 A)
Photometric Repeatability	≤0.001 A (0–0.5 A), ≤0.002 A (0.5–1.0 A)
Stray Light	≤0.03%T @ 220 nm & 360 nm
Stability	±0.0003 A/h @ 500 nm (after 1-hour preheat)
Baseline Flatness	±0.001 A
Noise	0.0005 A @ 500 nm
Scanning Speed	High, Medium, Low (Max. 3000 nm/min)
Wavelength Setting	Automatic
Display	10.1-inch TFT colored capacitive touch screen (1024×600)
Light Source	Imported Deuterium and Tungsten lamps
Detector	Imported Silicon Photodiode
Sample Compartment	10 mm manual 4-cell holder
Data Storage	Up to 8 GB for test data & working curves
Connectivity	USB drive, USB host, RS232
Software Compatibility	Optional PC software adhering to GLP/GMP standards
Power Requirements	AC 220 V/50 Hz or AC 110 V/60 Hz
Dimensions (L×W×H)	570 × 440 × 210 mm
Weight	20 kg
