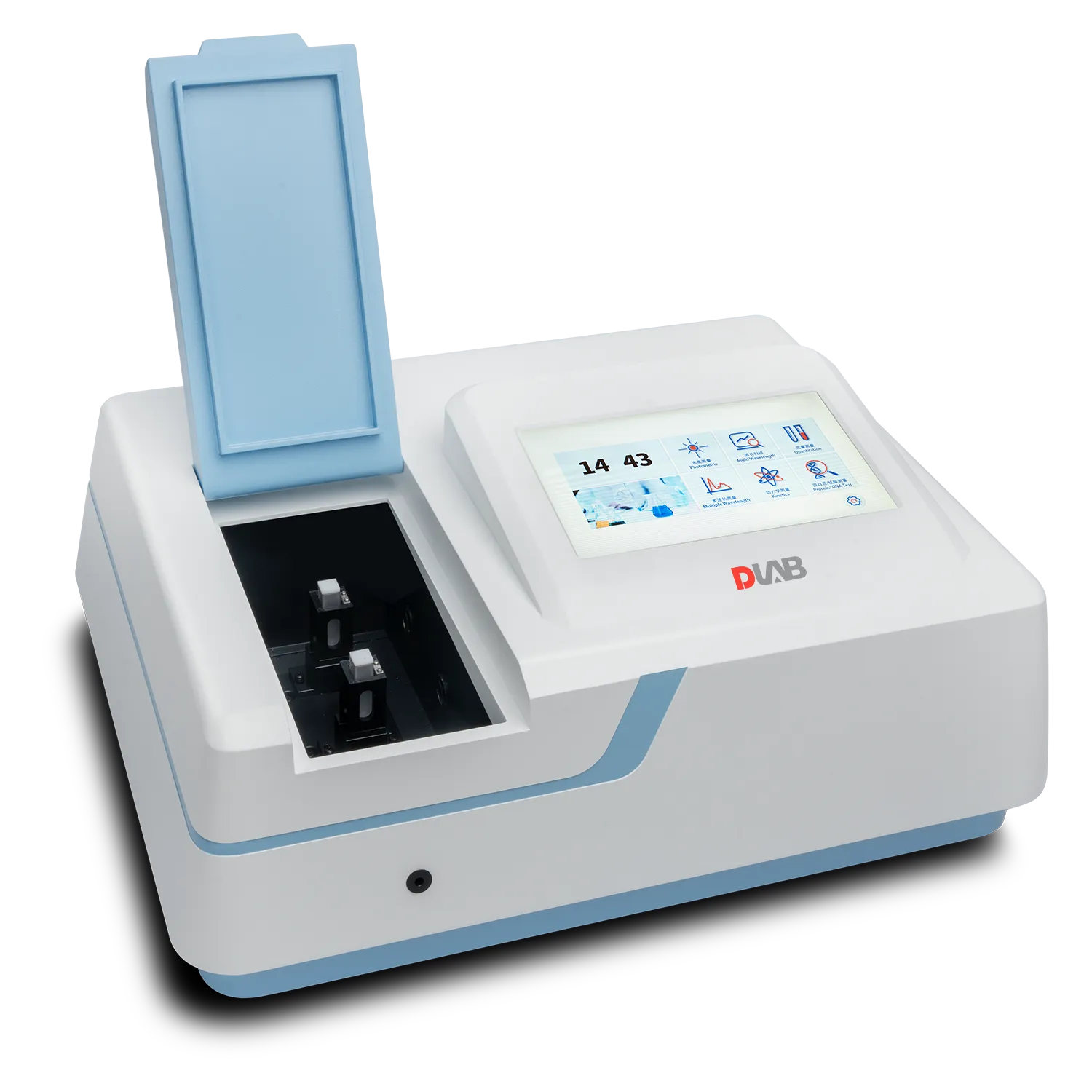

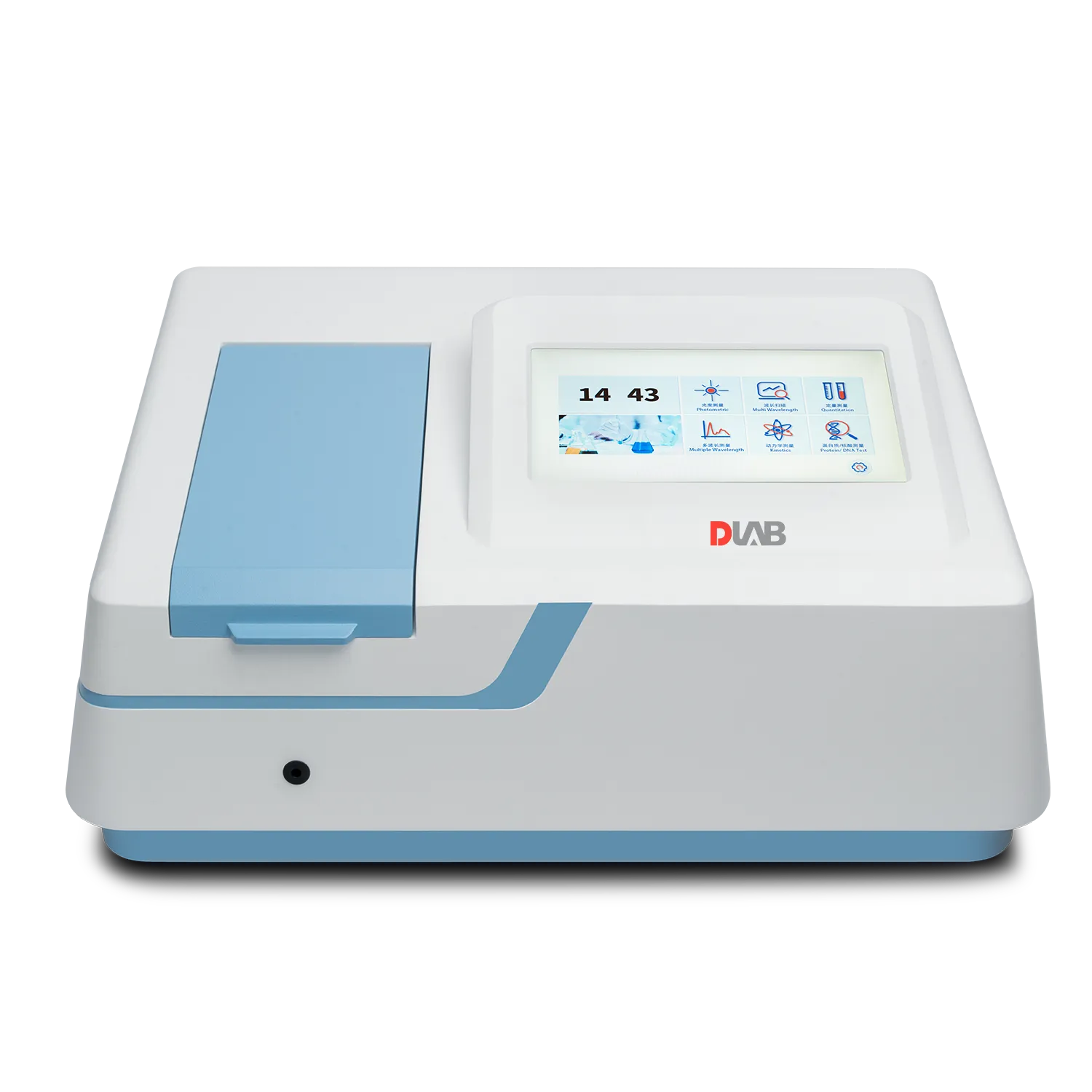

SP-UV5102 UV-Vis Spectrophotometer
Original price was: 1,400,000.00৳ .1,300,000.00৳ Current price is: 1,300,000.00৳ .
Key Features of SP-UV5102 UV-Vis Spectrophotometer
- Optical System: Double beam with 1200 lines/mm grating
- Wavelength Range: 190–1100 nm
- Spectral Bandwidth: 2.0 nm
- Light Source: Hamamatsu Xenon lamp (Japan)
- Detector: Silicon photodiode
- Display: 10.1-inch high-resolution color capacitive touch screen (1024×600)
- Measurement Modes: Photometric, quantitative, spectrum scanning, kinetics, DNA/protein testing, multi-wavelength
- Data Storage: Internal memory with USB export capability
- Software Compatibility: Optional PC software adhering to GLP/GMP standards
- Sample Compartment: 4-cell holder for 10 mm cuvettes
The SP-UV5102 UV-Vis Spectrophotometer is a high-performance UV-Visible spectrophotometer designed for advanced laboratory applications, including biotechnology, pharmaceuticals, and academic research. Its double-beam optical system, combined with a holographic grating monochromator and a silicon photodiode detector, ensures low stray light, low noise, and high photometric accuracy and stability.
Equipped with a 10.1-inch high-resolution color capacitive touch screen, the SP-UV5102 offers an intuitive and user-friendly graphical interface. The instrument supports multiple measurement modes, including photometric measurement, quantitative analysis, spectrum scanning, kinetics, DNA/protein testing, and multi-wavelength testing.
The SP-UV5102 UV-Vis Spectrophotometer boasts powerful storage capabilities, able to save various types of data and spectra, with a standard USB interface for direct data exportation for editing, measurement, and storage. It also features a power-off data retention function. When controlled via PC software, it provides richer extension applications, adhering to GLP/GMP laboratory standards and including comprehensive user management, log recording, data storage traceability, and report output functions.
| Parameter | Specification |
| Optical System | Double beam, 1200 lines/mm grating |
| Wavelength Range | 190–1100 nm |
| Spectral Bandwidth | 2.0 nm |
| Wavelength Accuracy | ±0.1 nm @ 656.1 nm, ±0.3 nm across full range |
| Wavelength Repeatability | ≤0.1 nm |
| Photometric Range | -0.3 to 3.0 A, 0–200%T, 0–9999 C |
| Photometric Accuracy | ±0.002 A (0–0.5 A), ±0.004 A (0.5–1.0 A) |
| Photometric Repeatability | ≤0.001 A (0–0.5 A), ≤0.002 A (0.5–1.0 A) |
| Stray Light | ≤0.03%T @ 220 nm & 360 nm |
| Stability | ±0.0003 A/h @ 500 nm (after 1-hour preheat) |
| Baseline Flatness | ±0.001 A |
| Noise | 0.0005 A @ 500 nm |
| Scanning Speed | High, Medium, Low (Max. 3000 nm/min) |
| Wavelength Setting | Automatic |
| Display | 10.1-inch color capacitive touch screen (1024×600) |
| Light Source | Hamamatsu Xenon lamp (Japan) |
| Detector | Silicon photodiode |
| Sample Compartment | 4-cell holder for 10 mm cuvettes |
| Data Storage | Internal memory with USB export capability |
| Connectivity | USB drive, USB host, RS232 |
| Software Compatibility | Optional PC software adhering to GLP/GMP standards |
| Power Requirements | AC 220 V/50 Hz or AC 110 V/60 Hz |
| Dimensions (L×W×H) | 570 × 440 × 210 mm |
| Weight | 27 kg |
| Color | |
|---|---|
| Weight |
27 kg |
| Dimensions |
570×440×210 mm |
Download the product catalog-SP-XUV5102
