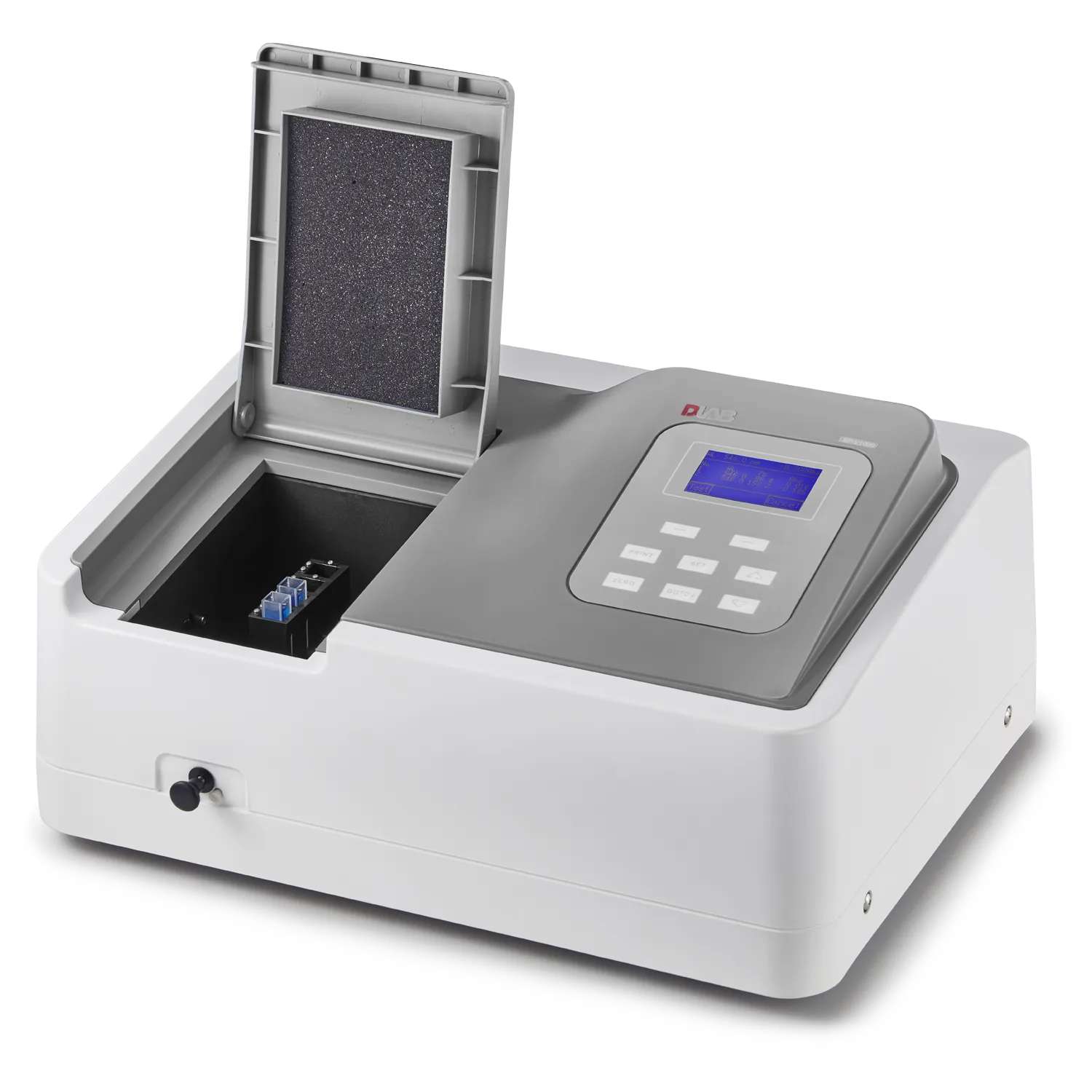

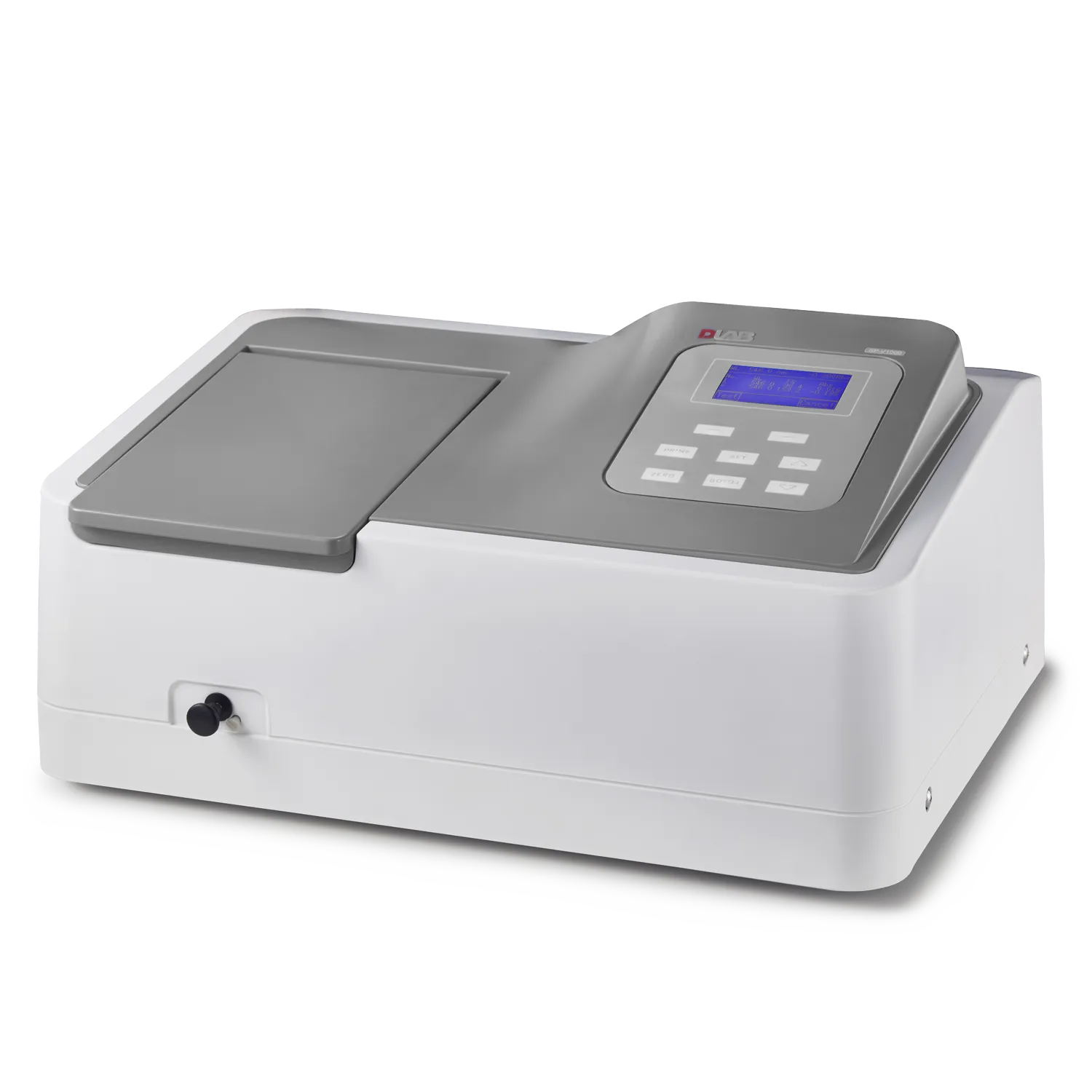

SP-V1000 Spectrophotometer
Original price was: 332,000.00৳ .330,000.00৳ Current price is: 330,000.00৳ .
Key Features of SP-V1000 Spectrophotometer
- Wavelength Range: 325–1000 nm
- Spectral Bandwidth: 4.0 nm
- Photometric Range: -0.3 to 3.0 A, 0–200%T
- Light Source: Tungsten lamp (Japan HYBEC)
- Optical System: Single beam
- Data Storage: Up to 200 data groups and 200 standard curves
- Display: 128×64 dot-matrix backlit LCD
- Auto Wavelength Calibration: Yes
- Connectivity: USB and parallel port
- Software Compatibility: Optional ‘Wave Professional’ for PC control and advanced functions
- Sample Compartment: Accommodates 5–100 mm path length cuvettes with optional holders
The SP-V1000 Spectrophotometer is a versatile, high-performance instrument designed for quantitative analysis in various fields such as biotechnology, education, and quality control. Its single-beam optical system, combined with a tungsten lamp, provides reliable measurements across a broad wavelength range of 325 to 1000 nm. The instrument’s 4.0 nm spectral bandwidth ensures precise and accurate results for a variety of applications.
Equipped with a user-friendly 128×64 dot-matrix backlit LCD, the SP-V1000 displays comprehensive data and graphical representations, facilitating easy interpretation of results. The device’s onboard memory allows storage of up to 200 data groups and 200 standard curves, with data recovery capabilities in case of power interruptions.
The SP-V1000 Spectrophotometer features auto wavelength calibration, enhancing measurement accuracy and reducing manual errors. Its sample compartment is adaptable, accommodating cuvettes with path lengths ranging from 5 to 100 mm, making it suitable for diverse experimental setups.
For advanced functionalities, the optional ‘Wave Professional’ software enables PC control, offering features such as spectrum scanning, time-based kinetics, multi-wavelength analysis, and nucleic acid/protein quantification.
| Parameter | Specification |
| Optical System | Single beam |
| Light Source | Tungsten lamp (Japan HYBEC) |
| Wavelength Range | 325–1000 nm |
| Spectral Bandwidth | 4.0 nm |
| Wavelength Accuracy | ±2 nm |
| Wavelength Repeatability | ≤1 nm |
| Photometric Range | -0.3 to 3.0 A, 0–200%T |
| Photometric Accuracy | ±0.003 A @ 0.5 A; ±0.006 A @ 1.0 A; ±0.5%T @ 100%T |
| Photometric Repeatability | ≤0.0015 A @ 0.5 A; ≤0.003 A @ 1.0 A; ≤0.25%T @ 100%T |
| Stray Light | ≤0.2%T @ 360 nm |
| Stability | ≤0.002 A/h @ 500 nm (after 1-hour preheat) |
| Display | 128×64 dot-matrix backlit LCD |
| Data Output | USB and parallel port |
| Sample Compartment | Accommodates 5–100 mm path length cuvettes |
| Dimensions (W×D×H) | 490×360×210 mm |
| Weight | 12 kg |
| Color | |
|---|---|
| Weight |
12 kg |
| Dimensions |
490×360×210 mm |
Download the product catalog-SP-V1000、V1100、UV1000、UV1100
RELATED PRODUCTS
SP-UV2101 UV-Vis Spectrophotometer
- Wavelength Range: 190–1100 nm
- Spectral Bandwidth: 1.0 nm
- Optical System: Single beam with 1200 lines/mm grating
- Light Source: Imported Deuterium and Tungsten lamps
- Detector: Imported Silicon Photodiode
- Display: 10.1-inch high-resolution TFT colored capacitive touch screen (1024×600)
SP-UV3102 UV-Vis Spectrophotometer
- Optical System: Double beam with 1200 lines/mm grating
- Wavelength Range: 190–1100 nm
- Spectral Bandwidth: 2.0 nm
- Display: 10.1-inch high-resolution color capacitive touch screen (1024×600)
- Measurement Modes: Photometric, quantitative, spectrum scanning, kinetics, DNA/protein testing, multi-wavelength
- Data Storage: Internal memory with USB export capability
- Software Compatibility: Optional PC software adhering to GLP/GMP standards
- Sample Compartment: 4-cell holder for 10 mm cuvettes
SP-UV5102 UV-Vis Spectrophotometer
- Optical System: Double beam with 1200 lines/mm grating
- Wavelength Range: 190–1100 nm
- Spectral Bandwidth: 2.0 nm
- Light Source: Hamamatsu Xenon lamp (Japan)
- Detector: Silicon photodiode
- Display: 10.1-inch high-resolution color capacitive touch screen (1024×600)
- Measurement Modes: Photometric, quantitative, spectrum scanning, kinetics, DNA/protein testing, multi-wavelength
- Data Storage: Internal memory with USB export capability
- Software Compatibility: Optional PC software adhering to GLP/GMP standards
- Sample Compartment: 4-cell holder for 10 mm cuvettes
SP-V1100 Visible Spectrophotometer
- Wavelength Range: 320–1100 nm
- Spectral Bandwidth: 2.0 nm
- Light Source: Tungsten lamp
- Optical System: Single beam
- Photometric Range: -0.3 to 3.0 A, 0–200%T
- Photometric Accuracy: ±0.002 A @ 0.5 A; ±0.004 A @ 1.0 A; ±0.3%T @ 100%T
- Photometric Repeatability: ≤0.001 A @ 0.5 A; ≤0.002 A @ 1.0 A; ≤0.15%T @ 100%T
- Wavelength Accuracy: ±0.5 nm
- Wavelength Repeatability: ≤0.3 nm
- Stability: ≤0.002 A/h @ 500 nm (after 2-hour preheat)
- Stray Light: ≤0.05%T @ 360 nm
- Sample Compartment: 4-position, 10 mm pathlength cuvette holder
- Display: LCD
- Data Storage: Stores up to 200 data groups and 200 standard curves; data recovery after power failure
- Connectivity: USB and parallel port for printer
- Software Compatibility: Optional 'Wave Professional' software for PC control, spectrum scanning, kinetics, multi-wavelength analysis, and nucleic acid/protein quantification

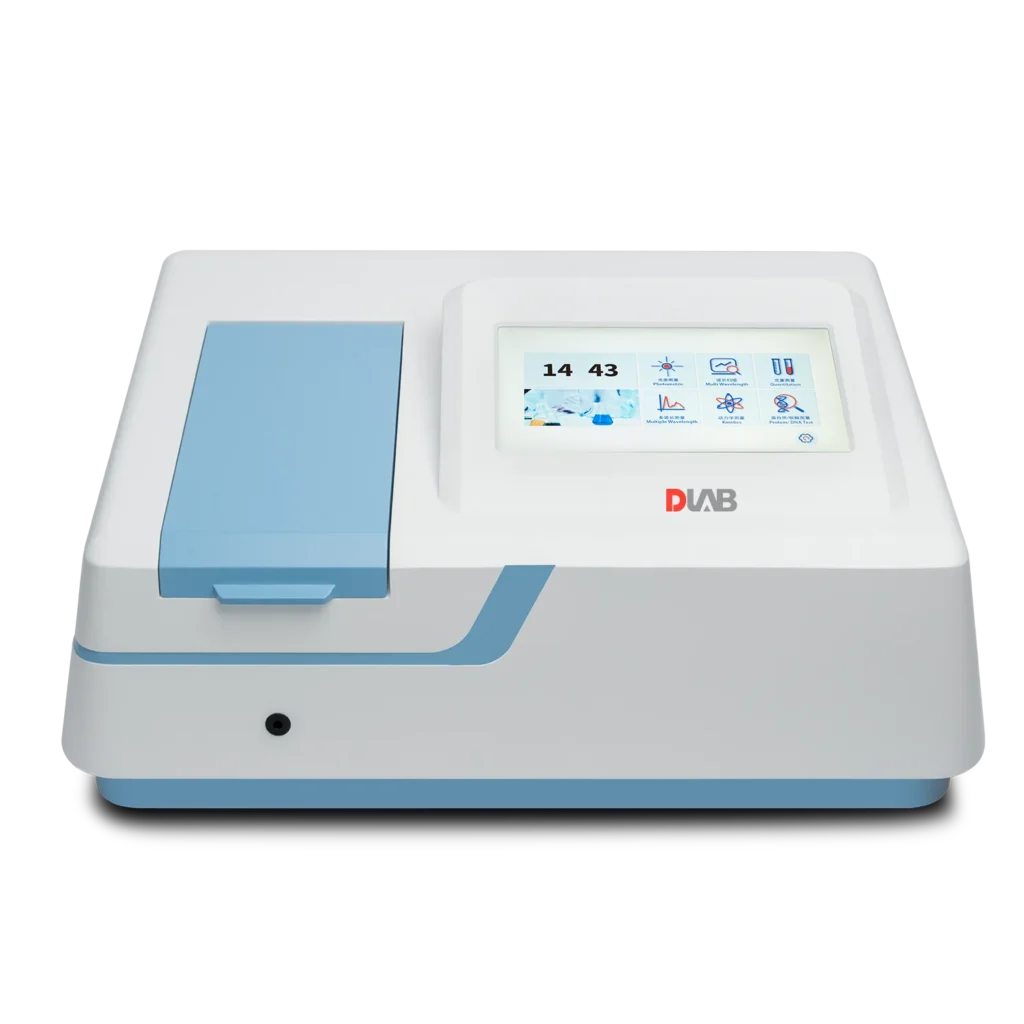

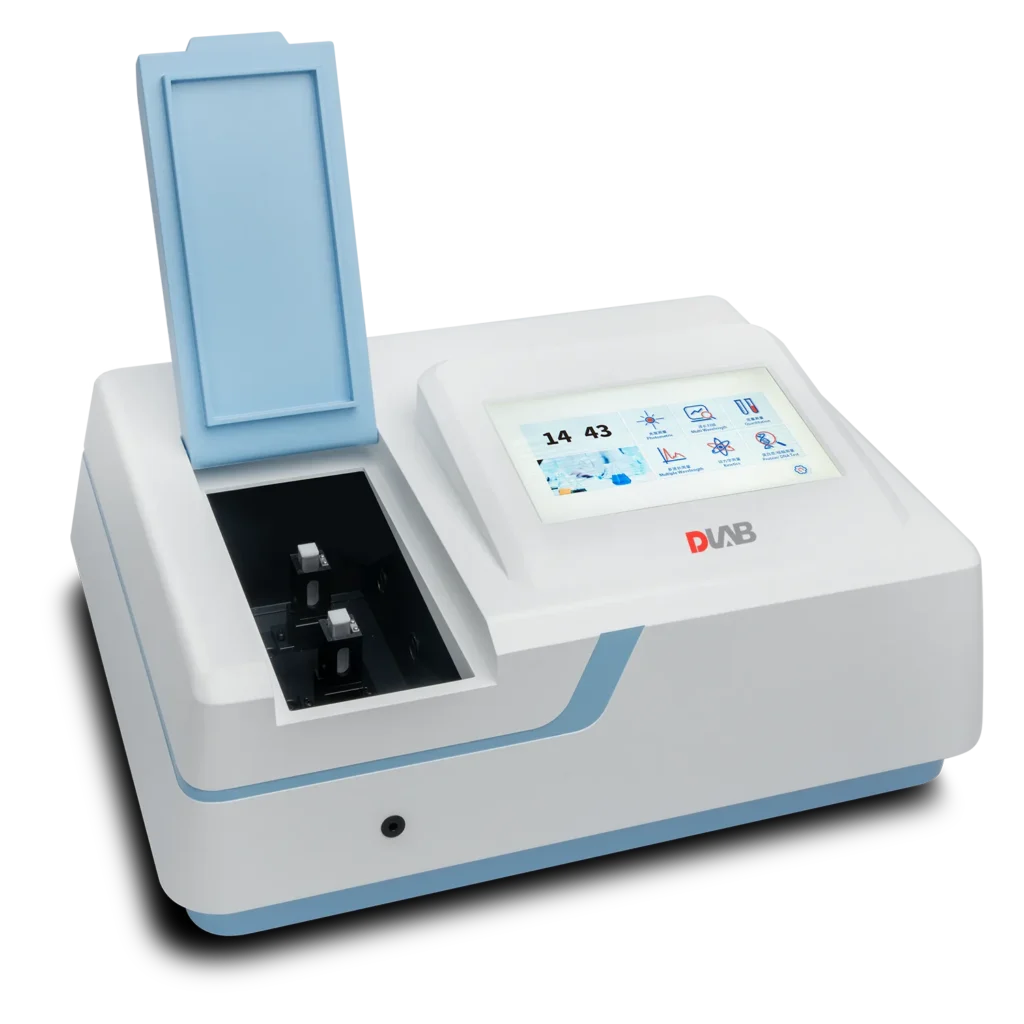

SP-XUV5101 UV-Vis Spectrophotometer
- Optical System: Double beam with 1200 lines/mm grating
- Wavelength Range: 190–1100 nm
- Spectral Bandwidth: 1.0 nm
- Light Source: Hamamatsu Xenon lamp (Japan)
- Detector: Silicon photodiode
- Display: 10.1-inch high-resolution color capacitive touch screen (1024×600)
- Measurement Modes: Photometric, quantitative, spectrum scanning, kinetics, DNA/protein testing, multi-wavelength
- Data Storage: Internal memory with USB export capability
- Software Compatibility: Optional PC software adhering to GLP/GMP standards
- Sample Compartment: 4-cell holder for 10 mm cuvettes
