4500rpm Clinical Centrifuge, DM0412 | DLAB Scientific

Q1: What are the official technical specifications of the DLAB DM0412 Clinical Centrifuge?

• Model: DLAB DM0412 Low-Speed Clinical Centrifuge.

• Speed Range: 300 to 4500 rpm, with an increment of 100 rpm.

• Maximum RCF (Relative Centrifugal Force): 2490 x g.

• Speed Accuracy: Plus or minus 20 rpm.

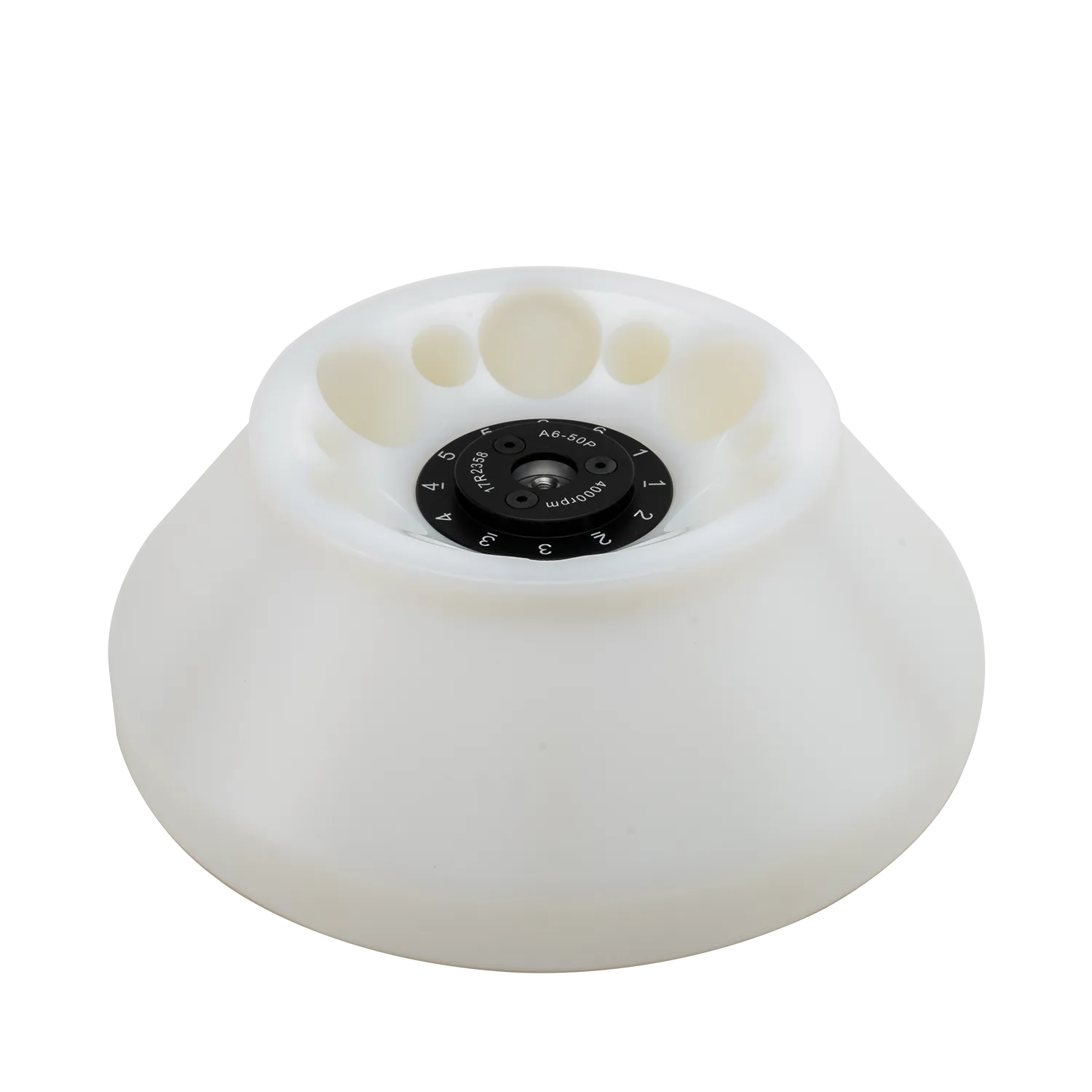

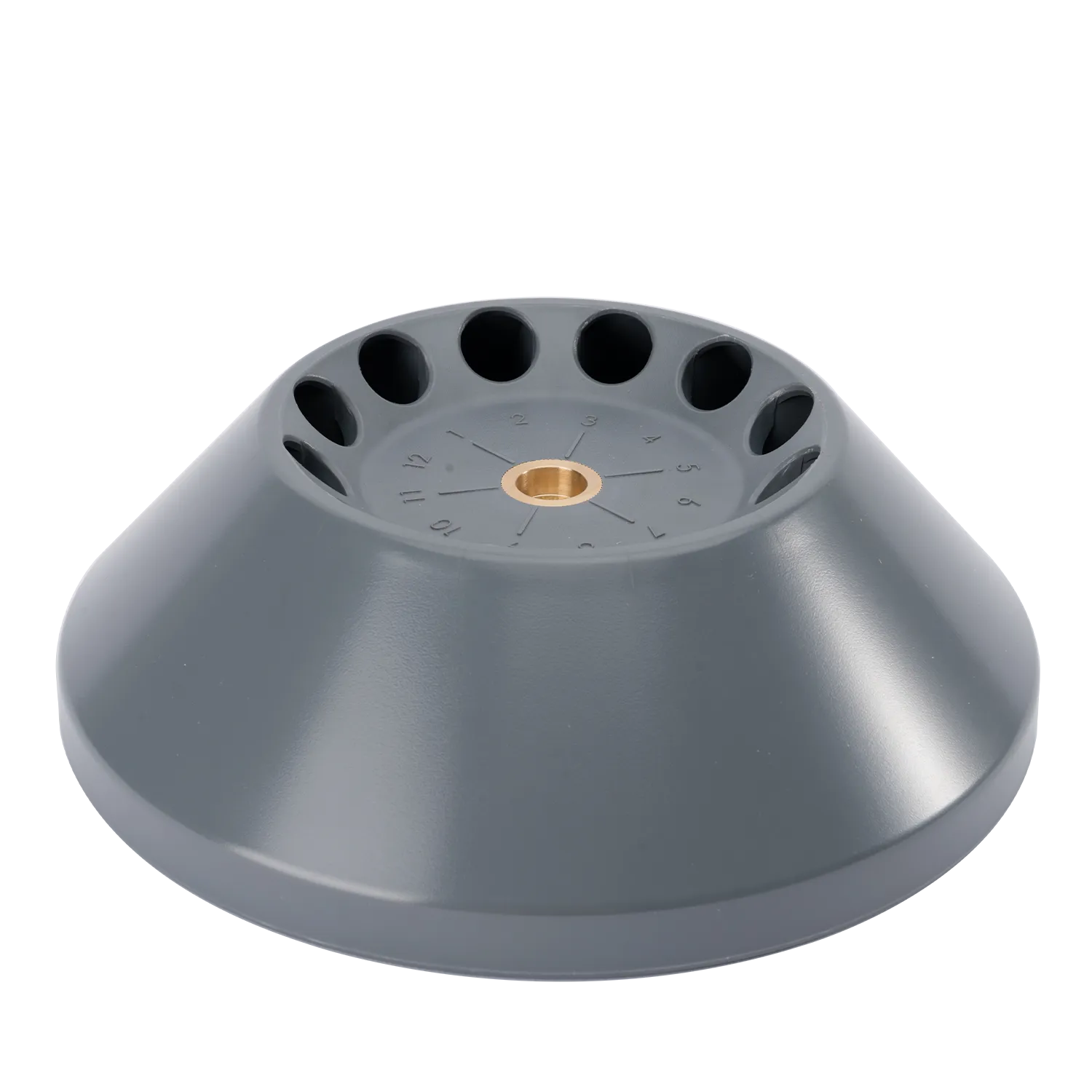

• Rotor Capacity Options: Angle rotors supporting up to 8 x 15 mL tubes or 12 x 10 mL / 7 mL / 5 mL vacuum tubes (A12-10P rotor), or 6 x 50 mL / 6 x 15 mL tubes (A6-50P rotor).

• Run Time: 30 seconds to 99 minutes, or continuous HOLD operation.

• Motor Type: Maintenance-free brushless DC motor.

• Display Screen: Clear LCD screen.

• Power Supply & Rating: Single-phase, 100V-240V, 50Hz/60Hz, 3A (70W).

• Dimensions & Net Weight: 301 x 354 x 217 mm; Net Weight: 6 kg.

Q2: What is the price and local procurement procedure in Bangladesh (BD)?

• Price Range: In Bangladesh (BD), the regular market price for the DLAB DM0412 Centrifuge typically ranges between BDT 75,000 and BDT 90,000, depending on import duties, specific rotor type included (A12-10P or A6-50P), and local supplier support packages.

• Procurement Procedure: For official corporate price quotations, institutional tenders, and direct stock verification in BD, contact authorized laboratory distributors such as Federal Scientific Mart (fsm.com.bd).

Q3: What warranty coverage and technical support are provided in Bangladesh?

• Warranty Terms: The DLAB DM0412 comes standard with a 12-month (1-year) factory warranty covering motor failures, electronic display faults, and internal control board defects.

• Local Support: Authorized local suppliers like Federal Scientific Mart provide local technical guidance, installation assistance, replacement rotor accessories, and maintenance support across Bangladesh.

Q4: How do the electric door lock and safety mechanisms operate?

• Automatic Lid Release: Features an electric door lock with an automatic release function upon run completion, saving processing time and preventing sample overheating.

• Built-In Safety Devices: Includes a door interlock, over-speed detector, and automatic internal self-diagnosis on startup to ensure operator safety.

Q5: Which primary applications and industries utilize the DM0412 centrifuge?

• Medical & Clinical Practices: Centrifugation of human blood and urine samples in hospitals and diagnostic laboratories.

• Veterinary & Life Sciences: Cell separation and sample preparation in veterinary clinics and university research institutes.

• Environmental Testing: Qualitative analysis and separation tasks involving water and soil samples.

Q6: How do you operate and execute a centrifugation cycle on the DM0412 step-by-step?

• Placement: Place the centrifuge on a firm, flat, and level workbench with adequate clearance on all sides.

• Loading: Symmetrically load your sample tubes into the rotor buckets, ensuring balanced weight distribution and secure rotor lid fastening.

• Parameter Setup: Turn on the power switch, use the intuitive LCD menu to set your desired rotational speed (rpm or g-force) and run duration (timer or hold).

• Execution: Close the lid until the electric lock engages, then press start; use the pulse key for quick spin functions if needed.

• Retrieval: Wait for the run to finish and the lid lock to automatically release before retrieving your separated samples.

Q7: What is the function of the pulse / quick spin feature?

• Quick Spin: Pressing and holding the pulse key initiates a short-time run function, allowing rapid spin-down of droplets on tube walls or fast micro-filtration without programming full timer cycles.

Q8: How do you properly clean and maintain the centrifuge?

• Chamber Care: Unplug the unit before cleaning. Wipe down the inner centrifuge chamber and exterior casing with a soft cloth and mild neutral detergent.

• Rotor Maintenance: Inspect plastic rotors regularly for wear or chemical residue. Clean tubes and adapters promptly after spills. Note that plastic rotors (such as A12-10P) should be sterilized via regular methods and are not autoclavable.

Q9: What items are included in the standard factory package when purchased?

• Main Unit: DLAB DM0412 Clinical Centrifuge main body.

• Rotor & Accessories: Selected angle rotor (either A12-10P or A6-50P depending on order configuration) with matching tube adapters.

• Documentation & Power: Power cable, user manual, and factory inspection certificate.

Q10: Why purchase DLAB laboratory equipment from Federal Scientific Mart (fsm.com.bd)?

• Genuine OEM Supply: 100% authentic DLAB Scientific equipment imported directly from certified manufacturing plants with official serial numbers.

• Local Technical Support: Expert setup advice, rotor/adapter compatibility guidance, and reliable local warranty service in BD.

• Nationwide Logistics: Safe, secure delivery to Dhaka, Chittagong, Rajshahi, Khulna, Sylhet, Barisal, Rangpur, and clinical or research laboratories across Bangladesh.
