MX-S Analog Vortex Mixer, 0-3000rpm | DLAB Scientific

Q1: What are the main technical specifications of the DLAB MX-S Variable Speed Vortex Mixer?

Answer: The manufacturer technical specifications:

• Speed Range: 0 to 3000 RPM (variable electronic speed control for gentle shaking to rapid mixing).

• Operation Modes: Dual modes — Touch and Continuous.

• Orbital Diameter: 4 mm orbital movement for efficient liquid dispersion.

• Motor Type: Shaded Pole Motor (60W total power consumption).

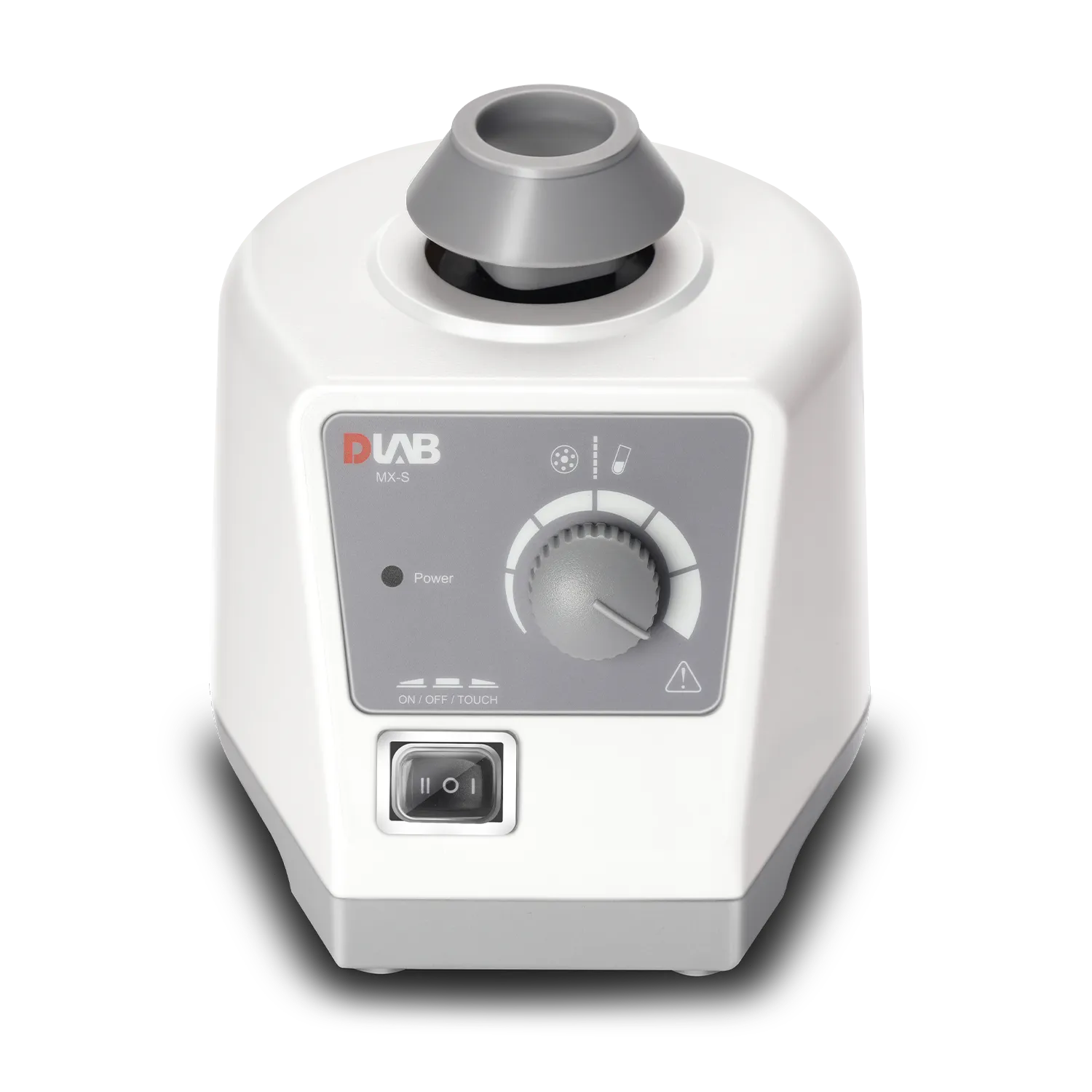

• Standard Attachment: Includes standard top head (VT1.1) suitable for single test tubes or small vessels up to 30 mm in diameter.

• Body & Base: Cast aluminum alloy body with steel base and vacuum suction feet for benchtop stability.

• Dimensions & Weight: 127 x 130 x 160 mm and 2.0 kg.

• Voltage & Power: 100–120V / 200–240V AC at 50/60 Hz.

Q2: What is the price of a vortex mixer in Bangladesh (BD)?

Answer: Vortex mixer prices in Bangladesh generally range from BDT 8,000 to BDT 80,000+, depending on motor construction, speed control options, continuous vs. touch operational modes, and accessory compatibility. Compact variable-speed units like the DLAB MX-S feature a 0–3000 RPM range, a 2.0 kg cast body, and vacuum suction feet for reliable laboratory performance. For official price quotes, direct supply, and institutional discounts, please contact Federal Scientific Mart (fsm.com.bd).

Q3: How do you operate and adjust speed on the DLAB MX-S Vortex Mixer?

Answer: Operation is configured directly via the front switch and electronic speed control knob:

1. Touch Mode: Set the toggle switch to Touch mode. Mixing starts automatically when light downward pressure is applied to the rubber top head with a tube and stops immediately upon release.

2. Continuous Mode: Switch to Continuous mode for hands-free, non-stop mixing operation.

3. Speed Adjustment: Turn the electronic speed dial to set mixing intensity anywhere from 0 to 3000 RPM. Electronic speed control ensures constant speed even during load changes.

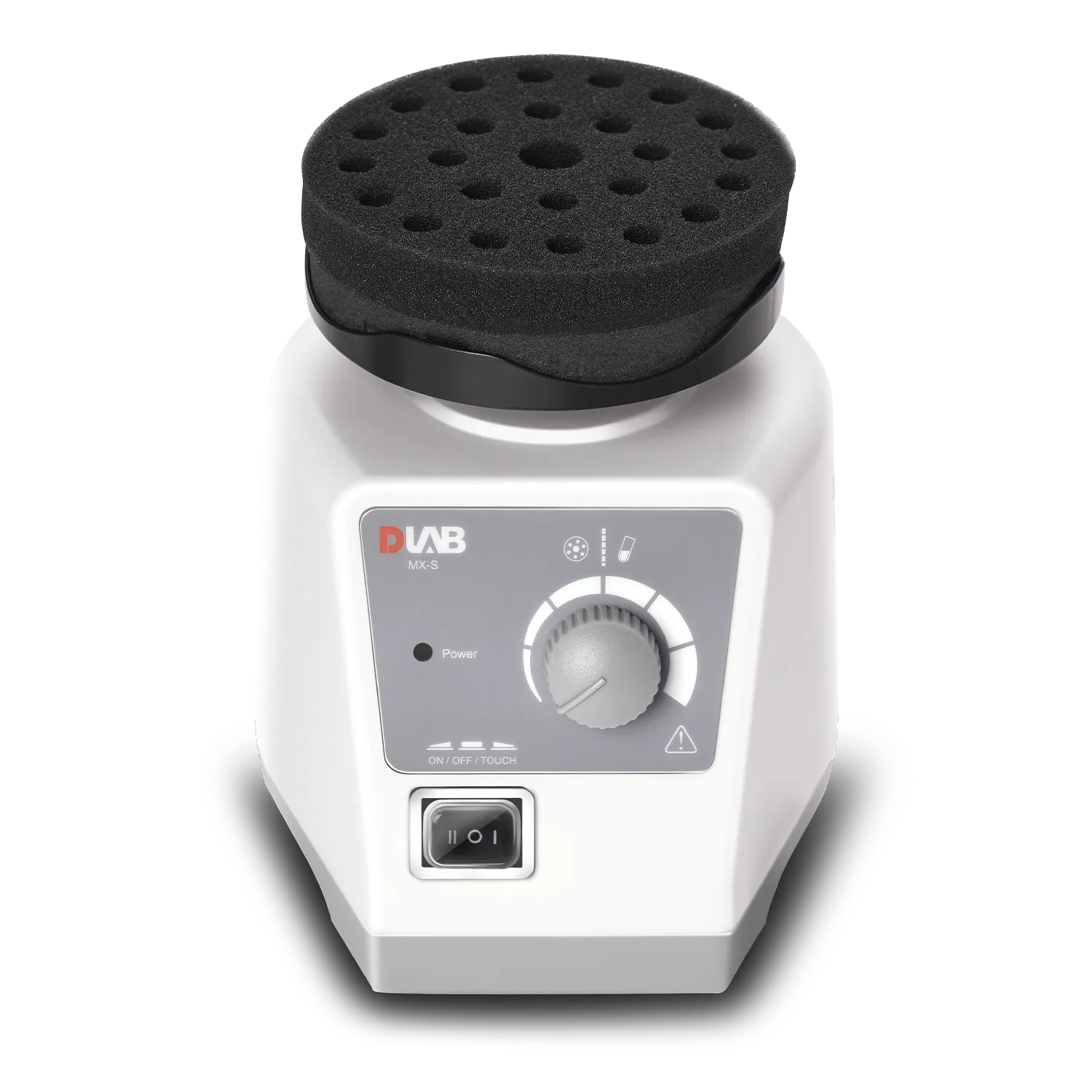

Q4: What optional attachments and adapters are available for the DLAB MX-S?

Answer: The DLAB MX-S supports modular top heads for various sample containers:

• VT1.1: Standard top head for single tubes up to 30 mm diameter (included by default).

• VT1.2: Tube holding rod for holding accessory attachments.

• VT1.3 / PS1.1: Universal top plate used with various tube adapters.

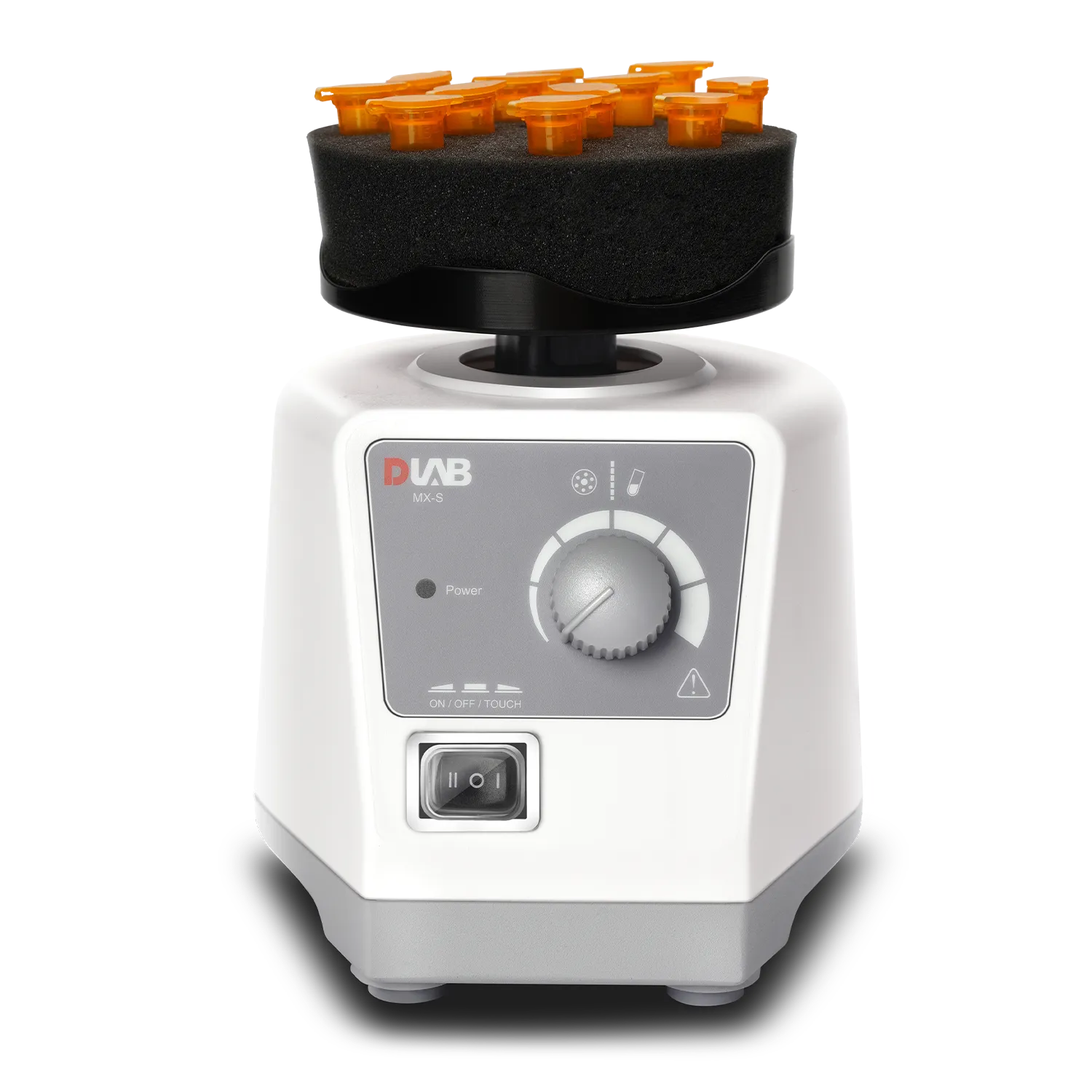

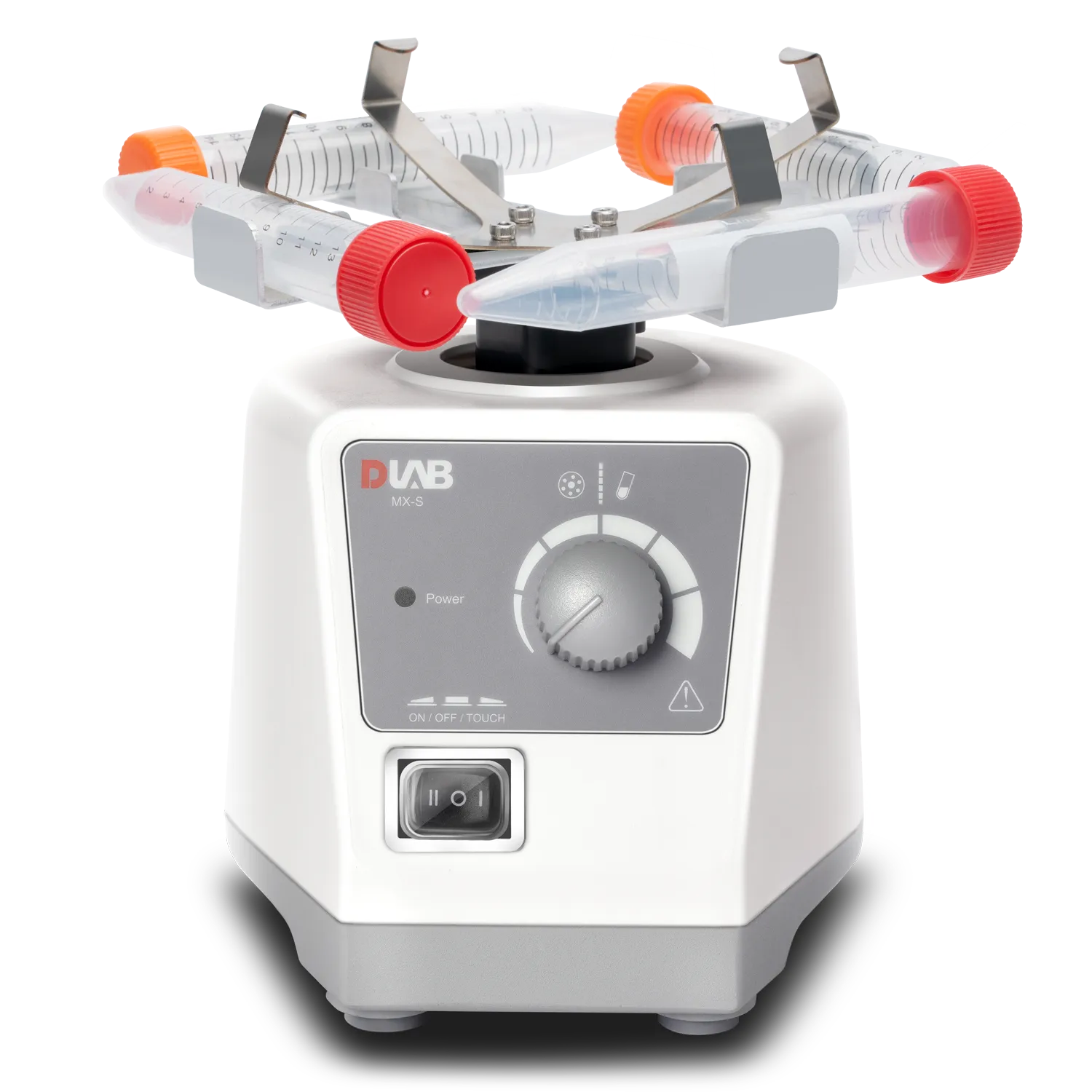

• VT1.3.1 to VT1.3.5: Tube adapters for 0.2 mL, 0.5 mL, 1.5/2.0 mL, 15 mL, and 50 mL tubes.

• VT1.4: Ampoule and small tube holder accessories.

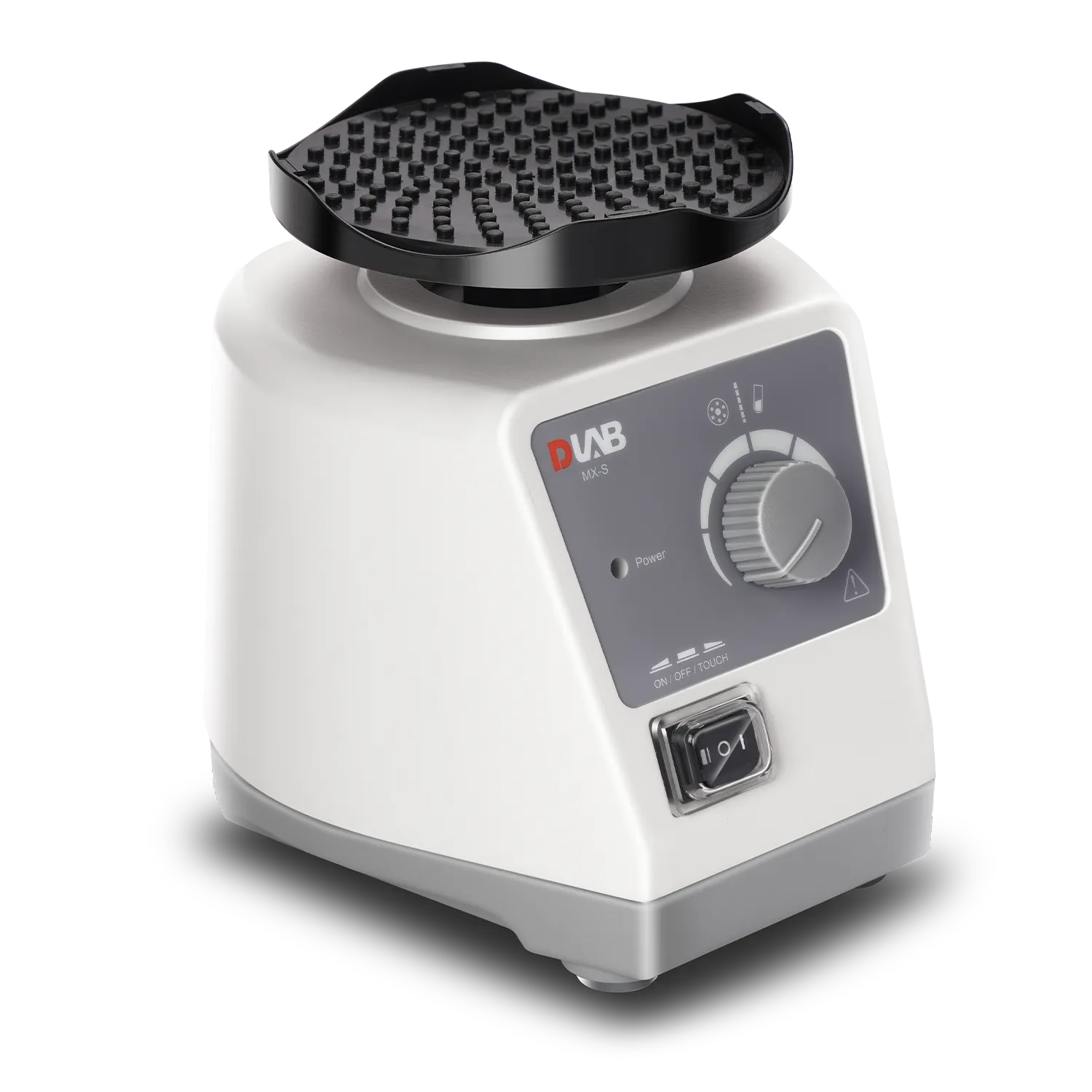

• PS1.0 / PS1.3: Microplate clamps for single or double microplates.

Q5: What laboratory safety and structural features are present on the DLAB MX-S?

Answer:

• Compact 2.0 kg Aluminum Housing: The lightweight, durable cast-metal housing protects internal circuitry from accidental chemical spills.

• Vacuum Suction Feet: Silicone suction feet lock the unit to bench surfaces, preventing movement during high-speed run cycles.

• Electronic Speed Control: Regulates motor torque to maintain set RPM even when liquid load or viscosity varies.

Q6: Is the DLAB MX-S compatible with standard power outlets in Bangladesh?

Answer: Yes. The unit supports 200–240V AC at 50/60 Hz mains supply, operating natively on Bangladesh's standard power grid without requiring an external step-down transformer.

Q7: Why purchase DLAB Scientific equipment from Federal Scientific Mart (fsm.com.bd)?

Answer: Purchasing through Federal Scientific Mart guarantees:

• Authorized Supplier: Federal Scientific Mart is an authorized supplier of official DLAB Scientific products in Bangladesh, delivering 100% genuine equipment.

• Warranty & Local Service: Full manufacturer warranty coverage, original replacement spare parts, and local technical repair support.

• Nationwide Delivery: Safe, reliable shipping to Dhaka, Chittagong, Rajshahi, Khulna, Sylhet, and all district headquarters across Bangladesh.
