MI0102005 7 Inch Magnetic Hotplate Stirrer with 510°C heating | Four E’s Scientific
Original price was: 60,000.00৳ .57,000.00৳ Current price is: 57,000.00৳ .
Key Features
• Model: MI0102005
• Heating: RT to 510°C with 7-inch ceramic-coated SS plate
• Speed: 50–1500 rpm
• Capacity: 20 L (H2O) compatible with stir bars up to 80 mm
• Display: LED screens speed, timer (up to 99h59m), and temperature
• Safety: Flashing 50°C hot warning light, adjustable 50–550°C safety cutoff, and IP42 metal housing
Product Description
The Four E’s Scientific 7 Inch LED Digital Magnetic Hotplate Stirrer (Model: MI0102005) provides high-performance heating and liquid mixing for demanding laboratory applications. It features a large 185 x 185 mm (7-inch) square stainless steel work plate coated with high-grade ceramic, delivering exceptional chemical resistance, high impact strength, and rapid thermal transfer across the entire surface. This makes it ideal for chemical synthesis, biopharmaceutical processing, environmental sample preparation, clinical diagnostics, and routine quality control (QC) procedures.
Driven by a powerful, long-life brushless DC motor, the MI0102005 handles large stirring volumes up to 20 liters of water (H2O) and maintains a stable speed range of 50 to 1500 rpm. Clear, high-visibility digital LED screens display live operational target and actual values for heating temperature, stirring speed, and runtime simultaneously. Operators can adjust values using independent 3D digital encoder wheels, while an internal PID controller delivers rapid heating up to 510°C with tight temperature control. The instrument also includes an integrated digital process timer selectable from 0 to 99 hours and 59 minutes for automated, unsupervised operations.
Safety and structural durability are engineered directly into the housing design. Built with a fully enclosed metal alloy casing, the unit provides high temperature resistance, optimal heat dissipation, and an IP42 protection rating according to DIN EN 60529 standards. A bright “HOT” surface warning alerts operators whenever the plate temperature exceeds 50°C to prevent accidental burns. The unit incorporates dual over-temperature protection via hardware and software, featuring an adjustable safety temperature limit from 50°C to 550°C. Additionally, users can attach an external PT1000 temperature sensor to control the medium sample temperature directly with an accuracy of ±1°C.
Technical Specifications
| Parameter | Specification |
| Product Name | Four E’s Scientific 7 Inch LED Digital Magnetic Hotplate Stirrer |
| Model | MI0102005 |
| Work Plate Dimension [W x D] | 185 x 185 mm (7 inch) |
| Work Plate Material | Stainless steel with ceramic coating |
| Motor Type | Brushless DC motor |
| Motor Rating Output | 15 W |
| Power | 1050 W |
| Heating Output | 1000 W |
| Voltage, Frequency | 100–120V / 200–240V, 50/60 Hz |
| Stirring Positions | 1 |
| Max. Stirring Quantity [$H_2O$] | 20 L |
| Max. Magnetic Bar Length | 80 mm x Ø 9.5 mm |
| Speed Range | 50 – 1500 rpm |
| Speed & Temperature Display | LED |
| Heating Temperature Range | Room Temp. – 510°C |
| Temperature Display Resolution | 0.1°C |
| Safety Temperature | 50 – 550°C |
| Timer Range | 0 – 99 hours 59 min |
| External Temperature Sensor | PT1000 support (control accuracy ±1°C) |
| “Hot” Surface Warning | 50°C |
| Protection Class (DIN EN 60529) | IP42 |
| Dimension [W x D x H] | 220 x 350 x 100 mm |
| Permissible Ambient Temperature | 5 – 40°C |
| Permissible Relative Humidity | 80% RH |
| Standard Accessories | Main unit, Magnetic stirrer bar, Power cord, User manual |
| Optional Accessories | PT1000 temperature sensor, Support clamp |
Download the Product Catalog- MI0102005_7inch magnetic stirrer
CE Certification- MI0102005-CE certificate
cTUVus Certification- MI0102005-cTUVus Certificate
Q1: What are the main technical specifications of the Four E's Scientific MI0102005 Magnetic Hotplate Stirrer?
Answer: The technical specifications for model MI0102005 include:
Display: Dual LED digital display for target and actual speed and temperature monitoring.
Speed Range: 50 to 1500 RPM powered by a maintenance-free Brushless DC Motor.
Heating Temperature Range: Room Temperature to 510°C with 1000W heating output.
Max Stirring Capacity: Up to 20 Liters (H2O).
Work Plate: 185 x 185mm (7-inch) ceramic-coated stainless steel for extreme chemical, impact, and thermal shock resistance.
Timer Range: Digital process timer from 0 to 99 hours 59 minutes for automated runs.
Temperature Accuracy: 1 degree centigrade with the included external PT1000 temperature sensor.
Protection Class: IP42 enclosure with fully enclosed alloy housing for heat dissipation and liquid spill protection.
Q2: What is the price of a magnetic hotplate stirrer in Bangladesh (BD)?
Answer: Magnetic hotplate stirrer prices in Bangladesh generally range from BDT 7,000 to BDT 120,000+, depending on factors like heating plate material , maximum heating capacity, digital & analog controls, and batch volume support. The high-temperature 7-inch units like the Four E's Scientific MI0102005 feature 20L capacity, brushless motors, and precise PT1000 temperature integration. For exact pricing, current discounts, and formal price quotes, please contact Federal Scientific Mart (fsm.com.bd) directly.
Q3: How do you adjust speed, temperature, and timer settings on the MI0102005?
Answer: Setting parameters on the unit is done via independent digital control wheels:
Setting Speed: Rotate the speed wheel to select any speed from 50 to 1500 RPM, visible on the dedicated speed display.
Setting Temperature: Adjust the temperature wheel to set target heating up to 510°C. The LED screen continuously compares actual vs. target heat.
Setting Timer: Program the process timer from 1 min to 99h 59min for unsupervised operation; heating and stirring automatically cease once the timer elapses.
Q4: What safety features are built into the MI0102005 to protect laboratory personnel?
Answer:
Hot Surface Warning: Displays a prominent visual warning light whenever the plate temperature exceeds 50°C (even when heating is turned off) to prevent accidental contact burns.
Dual Over-Temperature Protection: Independent hardware and software limit circuits prevent overheating beyond the safety threshold (50-550 °C).
Enclosed Alloy Casing: Seals internal circuitry against chemical spills, corrosive vapors, and liquid splashing.
Q5: Is the Four E's Scientific MI0102005 compatible with Bangladesh's electrical power grid?
Answer: Yes. The unit operates on standard 200–240V AC at 50/60 Hz (1050W max total power), allowing direct plug-and-play operation on Bangladesh's 220V power supply without requiring an external step-down transformer.
Q6: What applications and vessel types are supported by this 7-inch hotplate stirrer?
Answer: The MI0102005 is built for heavy-duty research applications, including chemical synthesis, sample dissolution, media preparation, and bio-pharmaceutical testing. Its 185 x 185 mm (7 inch) top plate comfortably holds single large glass beakers or Erlenmeyer flasks (up to 20L water volume) or multiple smaller sample vessels simultaneously.
Q7: Why purchase Four E's Scientific products from Federal Scientific Mart (fsm.com.bd)?
Answer: Purchasing through Federal Scientific Mart guarantees:
Authorized Supplier: Federal Scientific Mart is an authorized official supplier of Four E's Scientific equipment in Bangladesh, delivering 100% genuine products.
Factory Warranty & Service Support: Full manufacturer warranty coverage, original replacement parts, and dedicated local technical repair assistance.
Fast Nationwide Delivery: Safe, reliable shipping to Dhaka, Chittagong, Rajshahi, Khulna, Sylhet, and all district headquarters across Bangladesh.
Founded in 2009 under Four E’s Industrial Group, Four E’s Scientific is a global developer and manufacturer of high-precision benchtop laboratory equipment and OEM lab supplies. Operating out of its primary manufacturing base and R&D facilities in Guangzhou, China & Vietnam the company serves an international distribution network spanning Western Europe, Asia-Pacific, the Middle East, and North America—where its regional headquarters, Four E's USA, manages sales, distribution, and customer support from West Windsor, New Jersey. Four E’s Scientific specializes in core work-type categories, including liquid handling, mixing, shaking, and separation instruments, thermal and temperature control systems, life science and molecular tools, and laboratory consumables, delivering high-precision solutions that support critical workflows across healthcare, clinical diagnostics, biotechnology, and academic research.
RELATED PRODUCTS
340°C High Viscosity Hotplate Stirrer with Timer, MS-H-ProM | DLAB Scientific
In stock

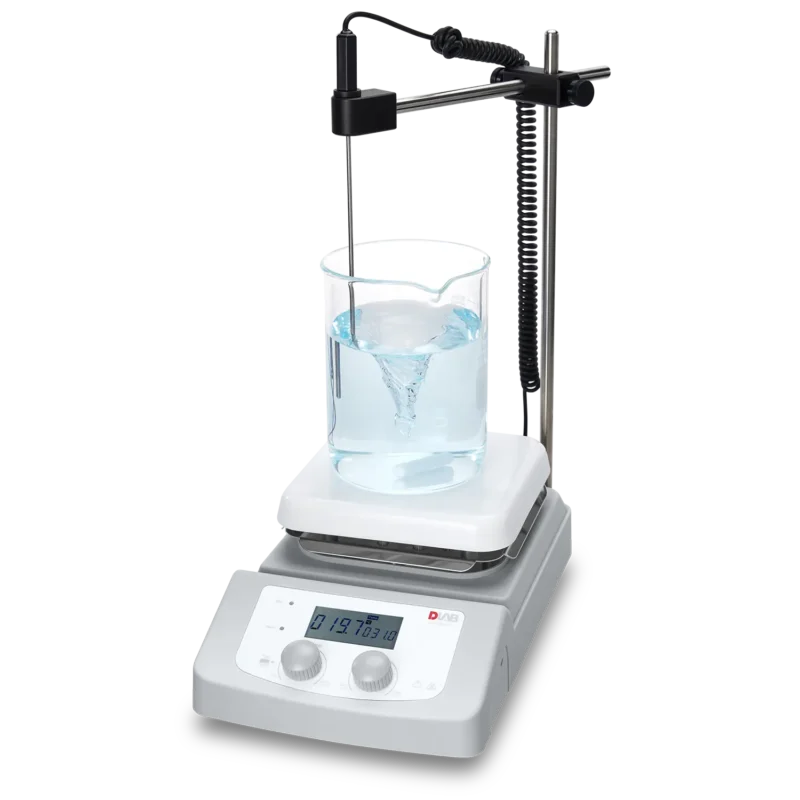

380°C Magnetic Hotplate Stirrer, MS-H380-Pro | DLAB Scientific
In stock
550°C LED Magnetic Hotplate Stirrer with 7inch plate, MS7-H550-Pro | DLAB Scientific
In stock

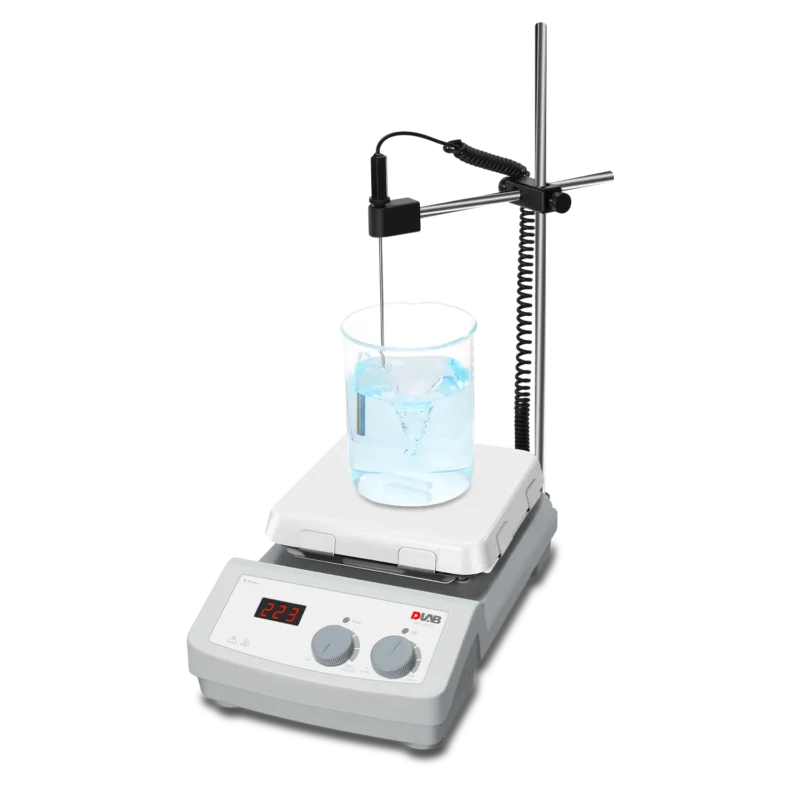

550°C LED Magnetic Hotplate Stirrer, MS7-H550-S | DLAB Scientific
