MS10-H500-Pro Magnetic Hotplate Stirrer with 500°C heating 100-1500rpm | DLAB Scientific

Product Description

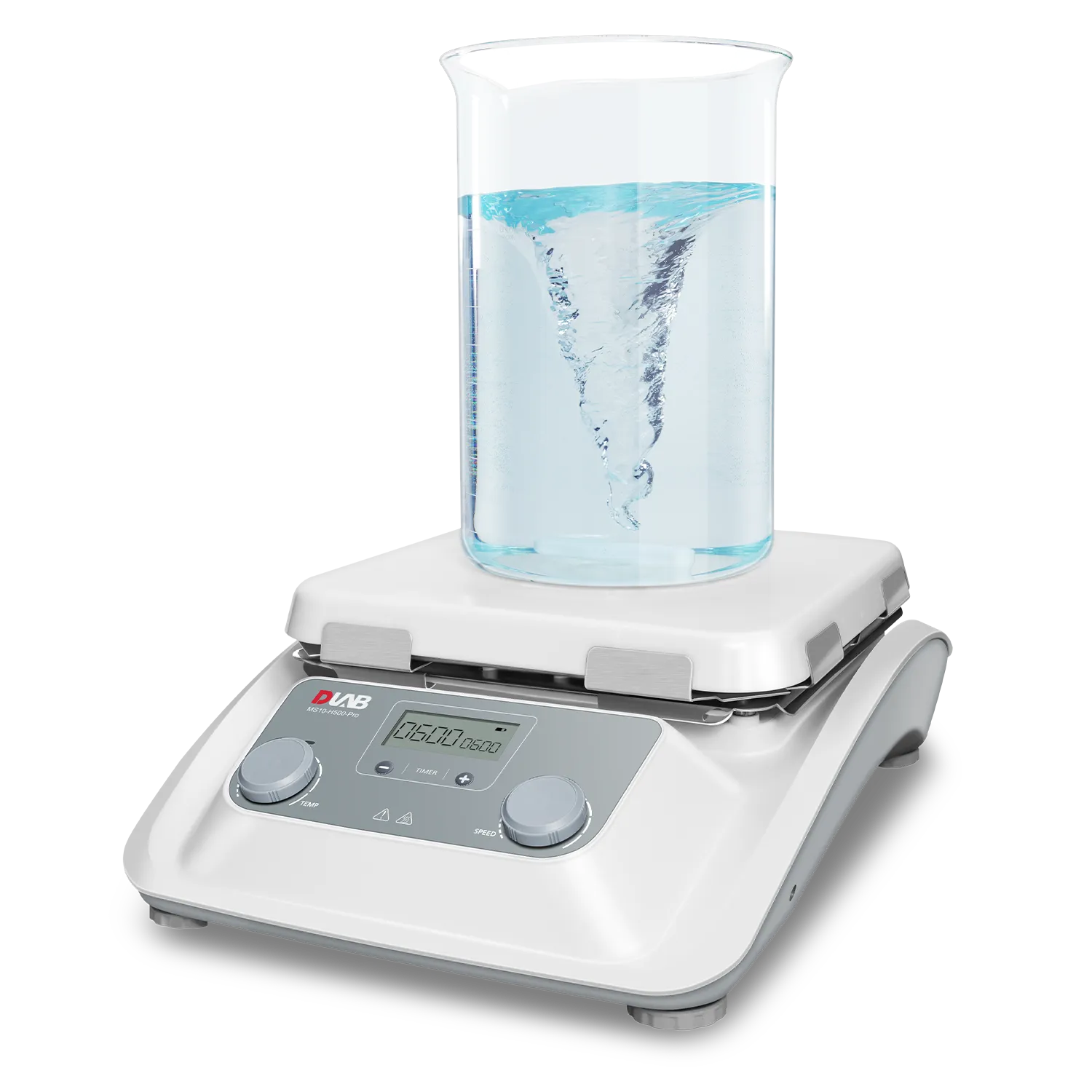

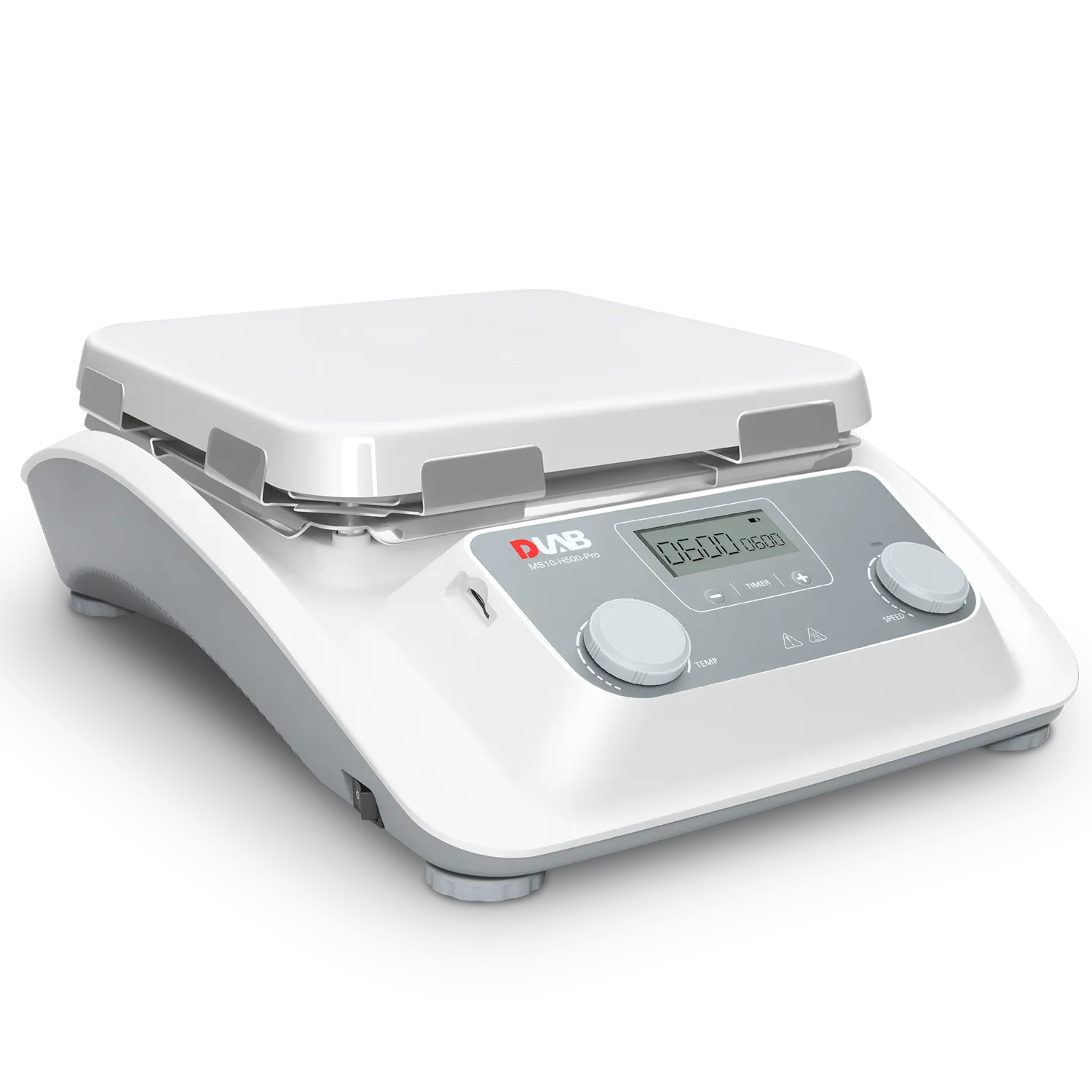

The DLAB MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer is a heavy-duty, high-capacity laboratory instrument engineered for large-volume industrial, physical-chemical analysis, and bio-pharmaceutical workflows. It features a massive 10-inch square glass-ceramic work plate that delivers exceptional chemical resistance and highly uniform, efficient thermal transfer across a maximized footprint. This makes it ideal for chemical synthesis, large-scale reagent dissolution, buffer preparation, routine titrations, environmental sample processing, quality control (QC) testing, and academic laboratory applications requiring high-throughput mixing.

Equipped with an outstanding, maintenance-free brushless DC motor, the MS10-H500-Pro handles an extra-large water volume of up to 30 liters and yields a flexible stirring speed range of 100 to 1500 rpm with a precise resolution of ±1 rpm. The system features a crystal-clear, centralized LCD display for the simultaneous, precise monitoring of set and real-time speed, time, and temperature values. It integrates advanced PID temperature control technology, allowing user-regulated heating from room temperature up to 500°C in ultra-precise 1°C increments, complemented by a built-in digital timer function ranging from 1 minute up to 99 hours and 59 minutes.

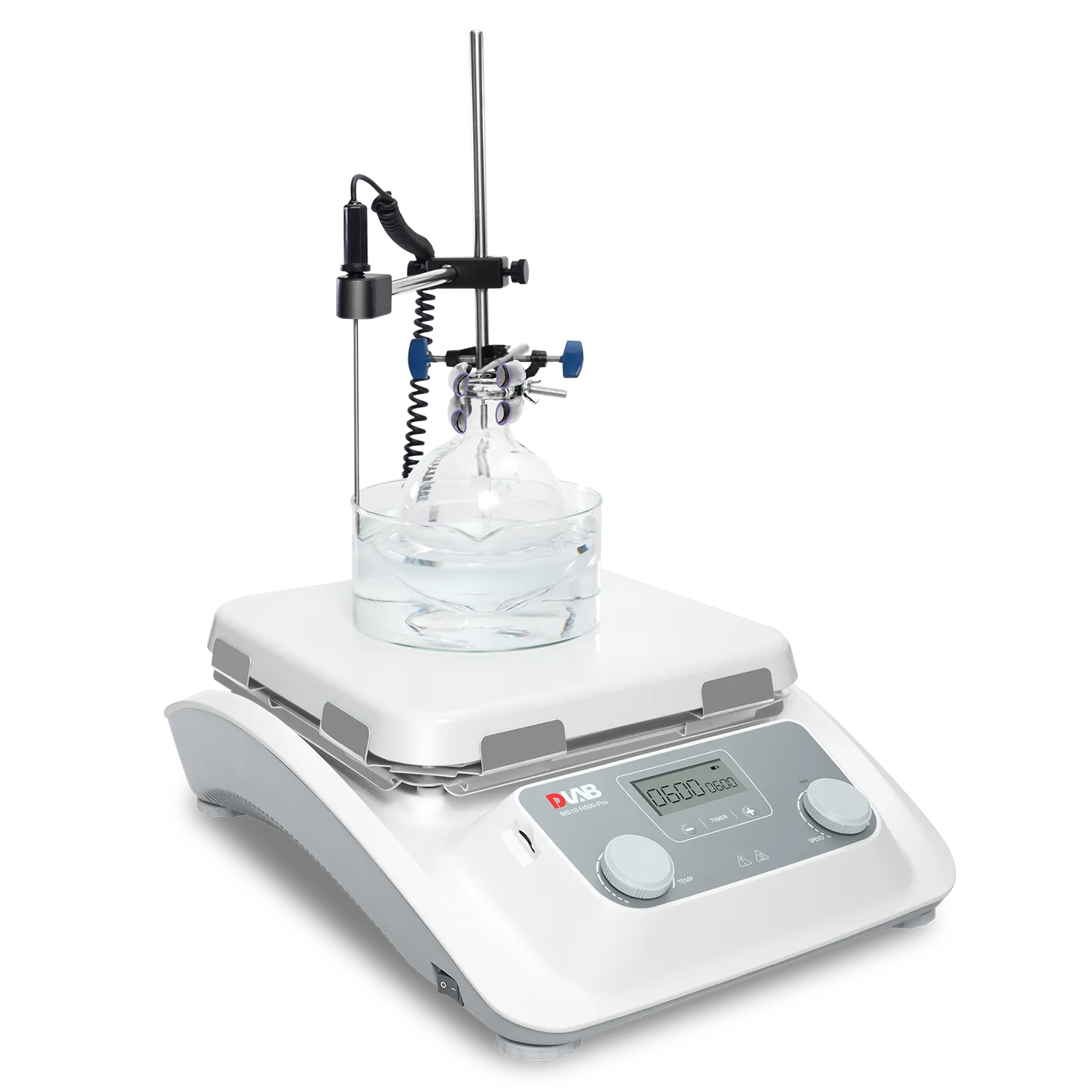

Safety and data tracking remain core priorities for this high-capacity digital hotplate stirrer. An independent “HOT” warning light flashes continuously whenever the plate temperature exceeds 50°C, remaining active even after the user turns the instrument power off. Operators can plug in an external PT1000 temperature sensor to bypass the hotplate temperature and monitor the real-time sample environment with a tight control accuracy of ±0.2°C, while an integrated SD card data connector records the instrument’s active running data in real time for precise traceability. A built-in safety circuit shuts down heating automatically if the internal temperature hits 540°C, guaranteeing reliable protection for your laboratory.

Technical Specifications
