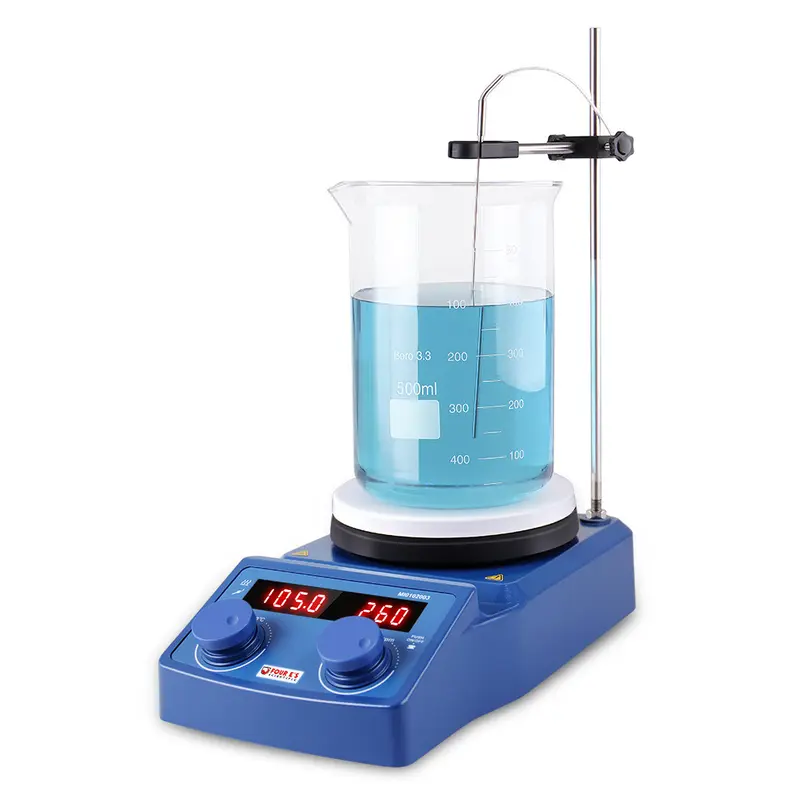

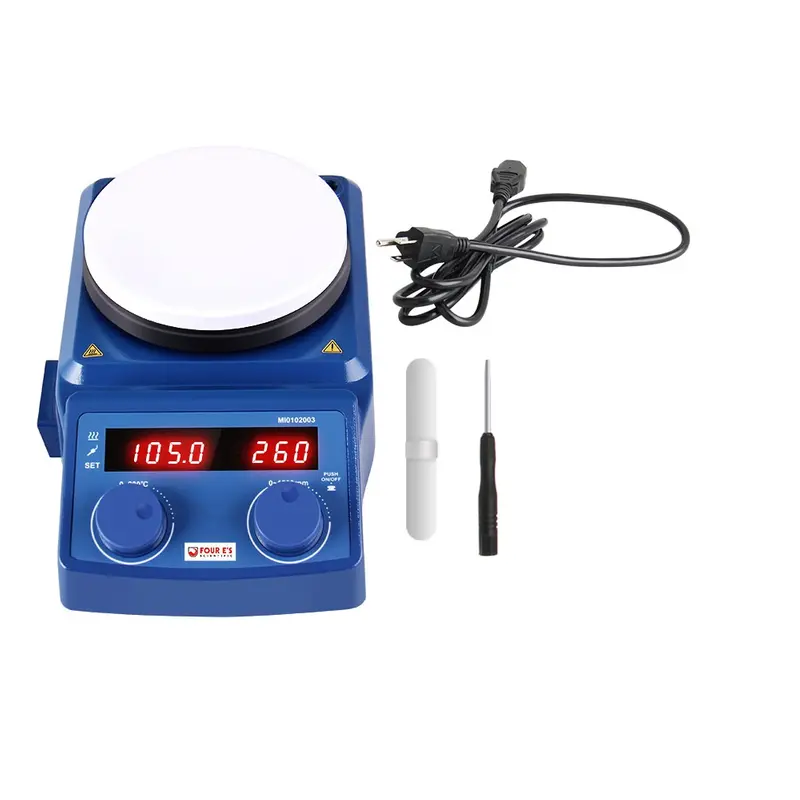

MI0102003 5 Inch Magnetic Hotplate Stirrer with 280°C heating | Four E’s Scientific
Original price was: 28,000.00৳ .26,500.00৳ Current price is: 26,500.00৳ .
Key Features
Model: MI0102003
Heating: RT to 280°C with 5-inch ceramic-coated plate
Speed: 100–1500 rpm by a brushless DC motor
Capacity: 5 L (H2O) compatible with magnetic stir bars up to 55 mm
Display: Clear LED display
Safety: Flashing 50°C hot warning light, flame-retardant plastic casing, and PT1000 support
Product Description
The Four E’s Scientific 5 Inch Magnetic Hotplate Stirrer (Economic Version, Model: MI0102003) delivers high-efficiency, cost-effective liquid heating and mixing tailored for routine laboratory workflows. It features a robust 135 mm (5-inch) circular stainless steel work plate coated with high-grade ceramic, which ensures excellent resistance against aggressive chemicals while promoting rapid and highly uniform heat dissipation. This makes it an essential benchtop tool for solution preparation, reagent dissolution, chemical synthesis, clinical diagnostic testing, academic research, and quality control (QC) procedures across industrial and educational laboratories.
Driven by a dependable DC motor, the MI0102003 handles up to 5 liters of water volume (H2O) and provides smooth, stable magnetic stirring across a broad speed range of 100 to 1500 rpm. Operators control parameters easily through an intuitive 3D digital encoder wheel. A clear digital LED display provides real-time readout of both rotational speed and heating temperature, ensuring precise operational monitoring throughout active runs. An optimized internal PID controller manages heating performance from room temperature up to 280°C with fast response times and tight temperature stability.
Safety and structural durability are integrated directly into the housing design. Constructed from high-temperature resistant and flame-retardant plastic, the enclosed casing shields internal electronics against fluid spills and harsh laboratory conditions. A visible “HOT” surface warning alerts users whenever the plate temperature exceeds 50°C to minimize burn hazards. Additionally, the unit features an adjustable safety temperature limit between 50°C and 320°C alongside automatic detection for external PT1000 temperature sensors, allowing operators to measure medium sample temperatures directly with an accurate control margin of ±1°C.
Technical Specifications
| Parameter | Specification |
| Product Name | Four E’s Scientific 5 Inch Magnetic Hotplate Stirrer (Economic Version) |
| Model | MI0102003 |
| Work Plate Dimension | Ø 135 mm (5 inch) |
| Work Plate Material | Stainless steel with ceramic coating |
| Motor Type | DC motor |
| Motor Rating Output | 1.4 W |
| Power | 630 W |
| Heating Output | 600 W |
| Voltage, Frequency | 100–120V / 200–240V, 50/60 Hz |
| Stirring Positions | 1 |
| Max. Stirring Quantity [$H_2O$] | 5 L |
| Max. Magnetic Bar Length | 55 mm x 10 mm |
| Speed Range | 100 – 1500 rpm |
| Speed & Temperature Display | LED |
| Heating Temperature Range | Room Temp. – 280°C |
| Temperature Display Resolution | 0.1°C |
| Safety Temperature Limit | 50 – 320°C |
| External Temperature Sensor | PT1000 support (accuracy ±1°C) |
| “Hot” Surface Warning | 50°C |
| Protection Class (DIN EN 60529) | IP42 |

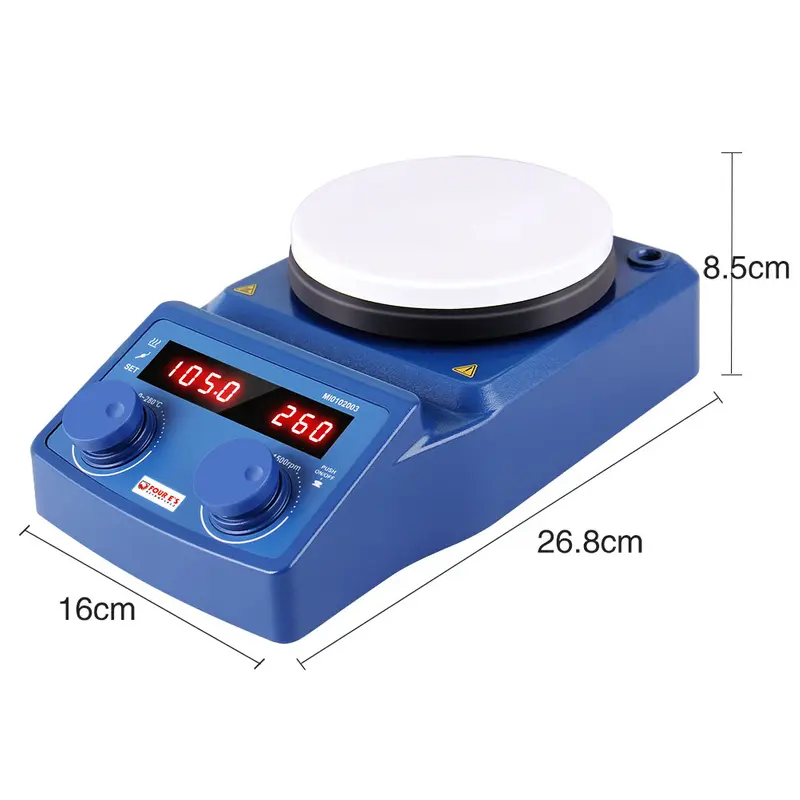

| Dimension [W x D x H] | 268 x 160 x 85 mm |
| Weight | 1.8 kg |
| Permissible Ambient Temperature | 5 – 40°C |
| Permissible Relative Humidity | 80% RH |
| Standard Accessories | Main unit, Power cord, User manual |
| Optional Accessories | PT1000 temperature sensor, Support rod & clamp |
Download the Product Catalog- MI0102003 Four Es Federal Scientific Mart
CE Certification- MI0102003-CE certificate
cTUVus Certification- MI0102003-cTUVus Certificate
Q1: What are the main technical specifications of the Four E's Scientific MI0102003?
Answer: The core performance specifications for model MI0102003 include:
Temperature Range: Room temperature to 280°C (with fine 0.1°C control display).
Speed Range: 100 RPM to 1500 RPM.
Stirring Capacity: Up to 5 Liters of water ($\text{H}_2\text{O}$).
Plate Dimensions: 135 mm diameter (5 inches).
Plate Material: Ceramic-coated stainless steel for fast heat delivery and chemical protection.
Heating Output: 600W heating power (630W total unit power).
Motor Type: Maintenance-free brushless DC motor.
Dimensions & Weight: $268 \times 160 \times 85\text{ mm}$ and 1.8 kg.
Q2: How do you operate the heating and stirring functions on this model?

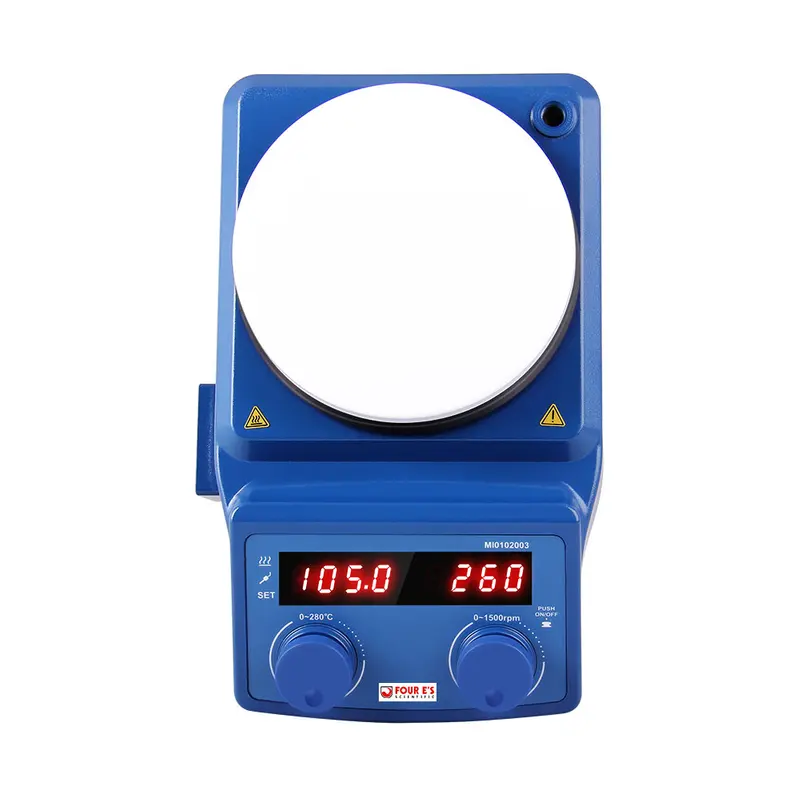

Answer: Controlling the unit is quick and intuitive using dual 3D digital knobs and LED screens:
Set Temperature: Turn the left control knob to choose your desired temperature. Push the knob in to start or stop heating.
Set Speed: Turn the right control knob to select your RPM. Push the knob in to start or stop stirring.
Monitor Live Values: The twin LED digital screens show both the target setting and real-time actual values side-by-side.
Q3: How do you connect and use the PT1000 external temperature sensor?
Answer: The optional PT1000 probe allows direct control of your sample liquid's internal temperature:

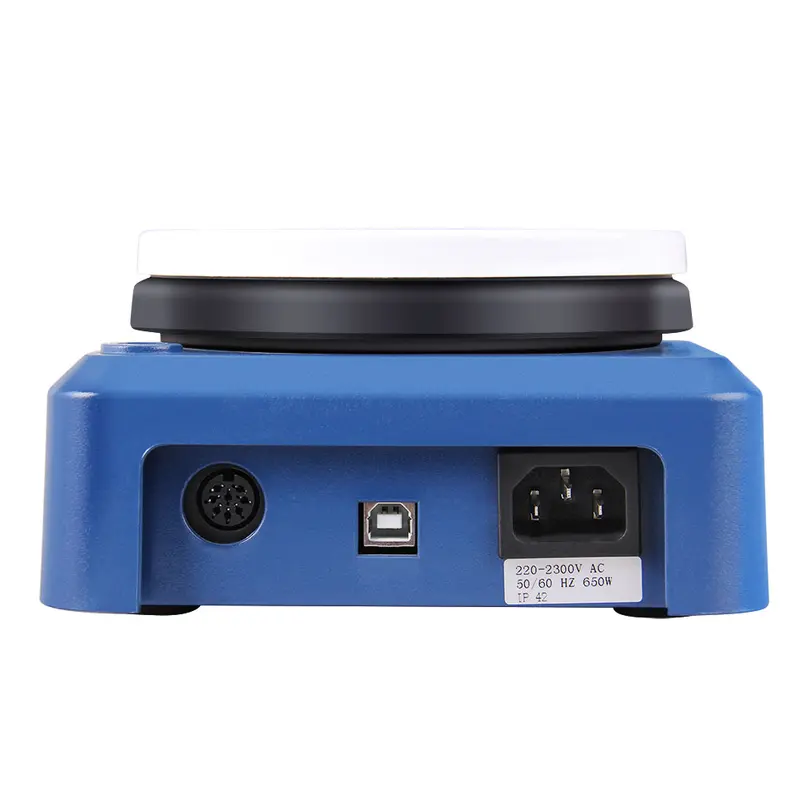

Plug the PT1000 probe into the port on the back of the device.
Place the sensor tip at least 20 mm deep into your liquid sample inside a glass beaker or flask.
The stirrer automatically detects the probe and switches to PT1000 control mode, regulating fluid temperature with 1 degree centrigrade accuracy.
Q4: What are the typical laboratory applications for the MI0102003 stirrer?
Answer: This hotplate stirrer is ideal for everyday laboratory routines, including:
Solution preparation and reagent mixing.
Chemical synthesis and thermal reactions.
Biological sample incubation.
Quality control testing in pharmaceutical and industrial labs.
Higher secondary and university chemistry practicals.
Q5: Is the Four E's Scientific MI0102003 compatible with Bangladesh's electrical supply?
Answer: Yes. The unit operates on 200–240V AC at 50/60 Hz, which matches Bangladesh’s standard 220V grid supply. No extra step-down transformer is needed.
Q6: What built-in safety features protect the user and equipment?
Answer:
Residual Hot Warning: Displays a bright "HOT" alert on the screen whenever the plate temperature exceeds 50°C, even after the unit is turned off.
Over-Temperature Protection: Features an adjustable safety circuit (50°C to 320°C) that automatically shuts off the heater if temperature exceeds safe thresholds.
Splash-Proof Housing: Built with an IP42 enclosure and flame-retardant casing to protect internal circuitry from liquid spills.
Q7: Why buy the Four E's Scientific MI0102003 from Federal Scientific Mart (fsm.com.bd)?
Answer: Ordering through Federal Scientific Mart guarantees:
100% Genuine Product: Federal Scientific Mart is authorized supplier of Four E's Scientific products. All the lab equipment sourced directly through official manufacturer channels.
Local Warranty & Service: Reliable warranty coverage and dedicated technical support right here in Bangladesh.
Fast Nationwide Delivery: Safe, reliable shipping to Dhaka, Chittagong, Rajshahi, Khulna, Sylhet, and all district headquarters across Bangladesh.
Founded in 2009 under Four E’s Industrial Group, Four E’s Scientific is a global developer and manufacturer of high-precision benchtop laboratory equipment and OEM lab supplies. Operating out of its primary manufacturing base and R&D facilities in Guangzhou, China & Vietnam the company serves an international distribution network spanning Western Europe, Asia-Pacific, the Middle East, and North America—where its regional headquarters, Four E's USA, manages sales, distribution, and customer support from West Windsor, New Jersey. Four E’s Scientific specializes in core work-type categories, including liquid handling, mixing, shaking, and separation instruments, thermal and temperature control systems, life science and molecular tools, and laboratory consumables, delivering high-precision solutions that support critical workflows across healthcare, clinical diagnostics, biotechnology, and academic research.
1 review for MI0102003 5 Inch Magnetic Hotplate Stirrer with 280°C heating | Four E’s Scientific
Clear filtersRELATED PRODUCTS

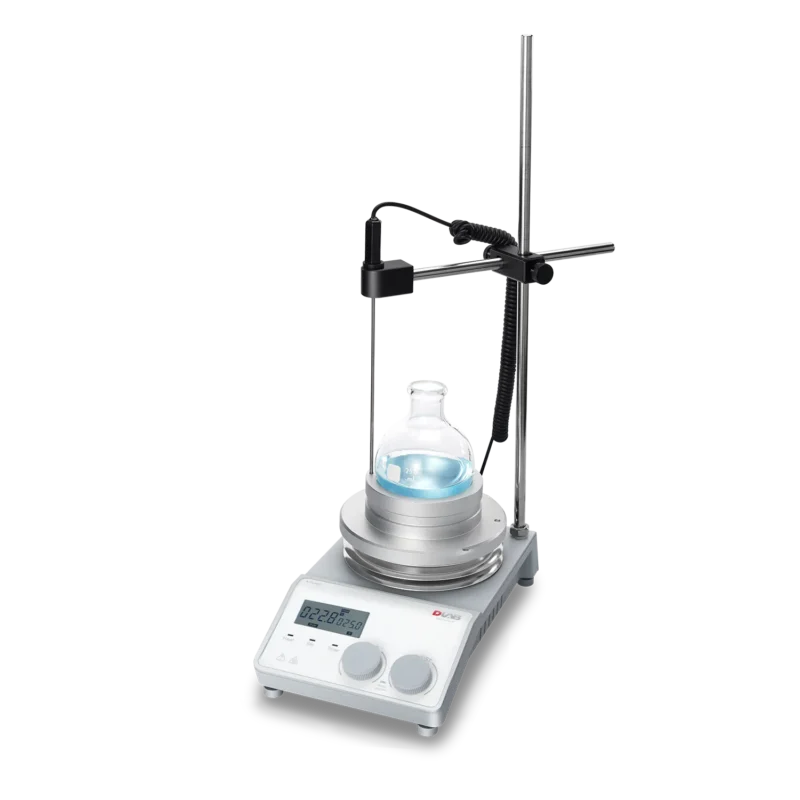

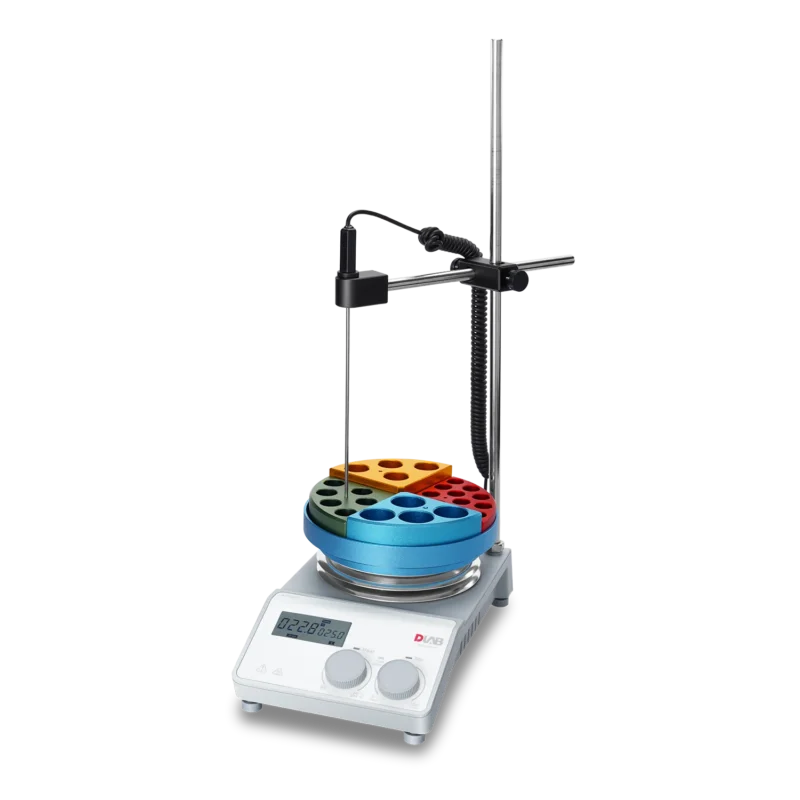

340°C High Viscosity Hotplate Stirrer with Timer, MS-H-ProM | DLAB Scientific
In stock

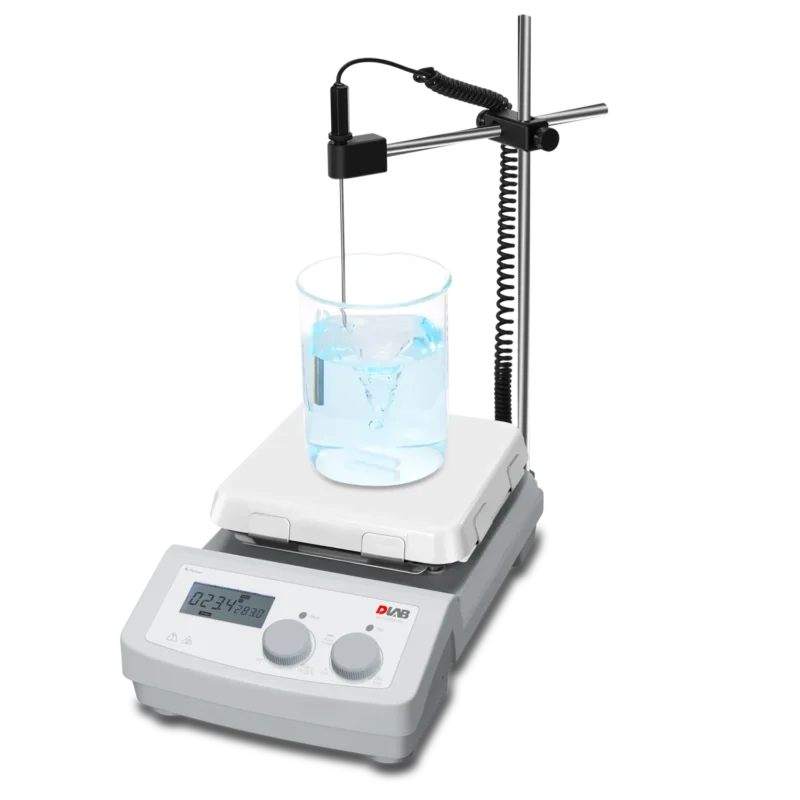

550°C LED Magnetic Hotplate Stirrer with 7inch plate, MS7-H550-Pro | DLAB Scientific
In stock
MI0102005 7 Inch Magnetic Hotplate Stirrer with 510°C heating | Four E’s Scientific
In stock
MS-H-ProT Magnetic Hotplate Stirrer with 340°C heating 100-1500rpm | DLAB Scientific
In stock

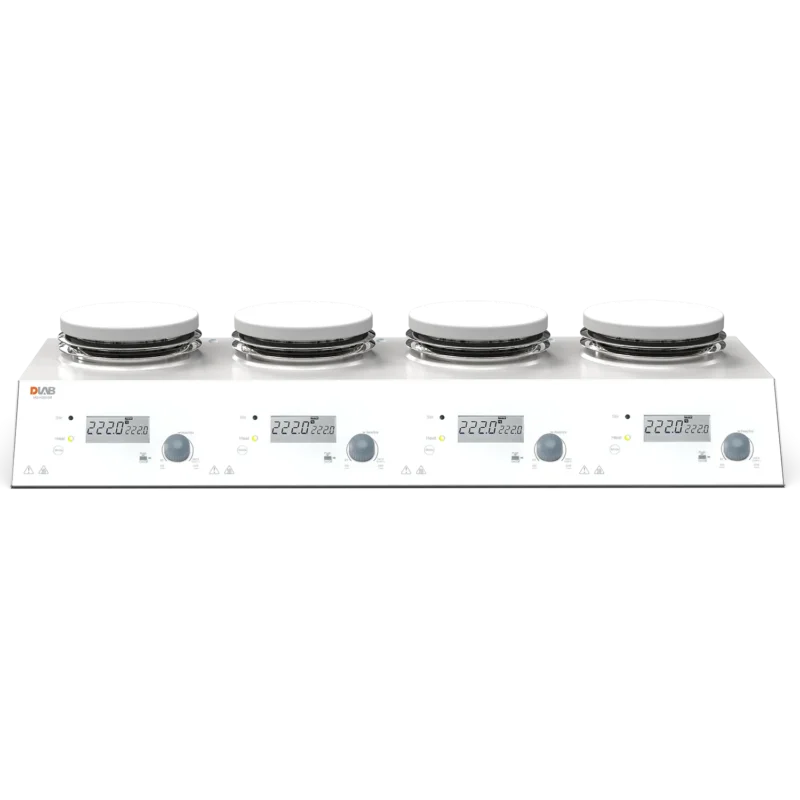

MS-H340-S4 LCD 4 Position Magnetic Hotplate Stirrer with 340℃ Heating | DLAB Scientific
